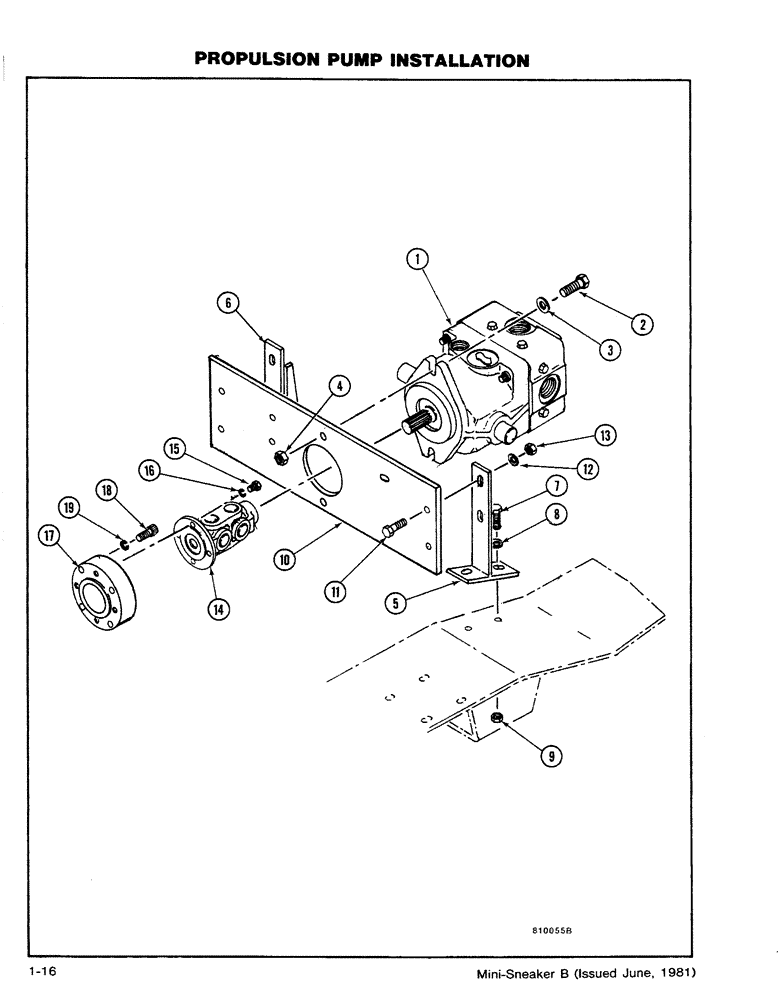

Запчасти Case CASE (1-16) - PROPULSION PUMP INSTALLATION (06) - POWER TRAIN

1

H646091

PUMP

PROPULSION PUMP ASSEMBLY - (See figure 1-46)

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 - Lock)

2шт.

5

H646133

BRACKET

- Pump Plate, LH

1шт.

6

H646034

BRACKET

- Pump Plate, RH

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

195-525

WASHER,3/8", SAE

4шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8 - Lock)

4шт.

10

H415232

PLATE

- Pump Mounting

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

12

195-525

WASHER,3/8", SAE

4шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8 - Lock)

4шт.

14

H582007

JOINT TURNING

U-JOINT ASSEMBLY - (See figure 1-42)

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

H385252

SPACER

- Flywheel

1шт.

18

165-109

BOLT - NC SH (3/8 x 1)

4шт.

19

192-401

LOCK WASHER,3/8"

3/8"

4шт.
