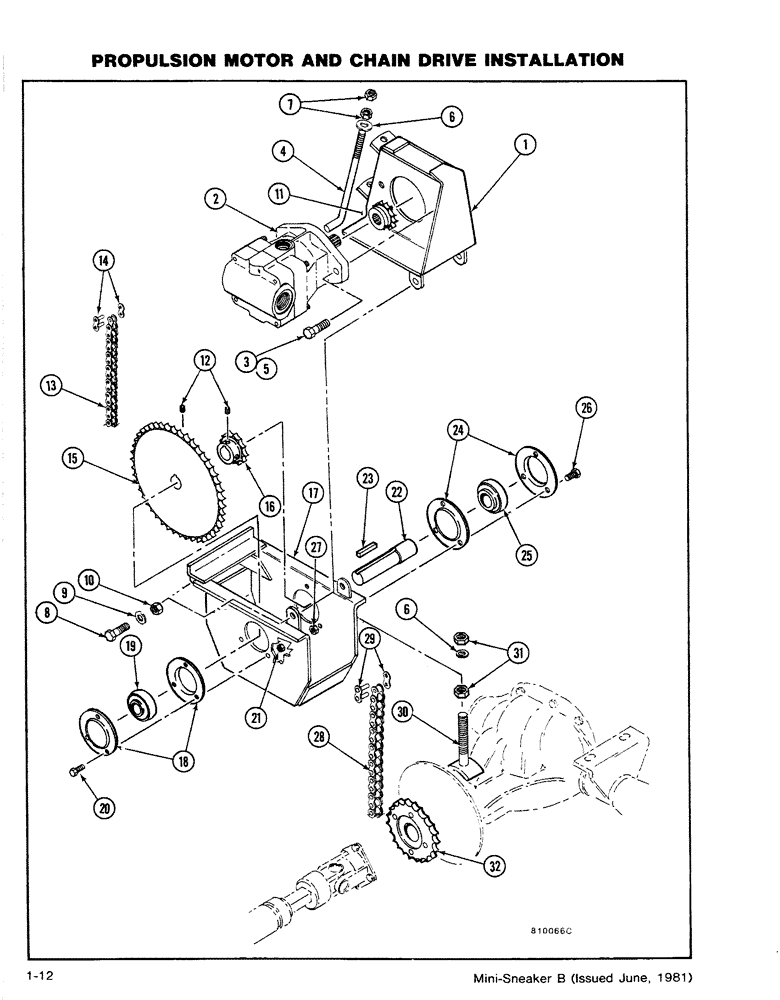

Запчасти Case CASE (1-12) - PROPULSION MOTOR AND CHAIN DRIVE INSTALLATION (06) - POWER TRAIN

1

H660480

BRACKET

- Motor Mounting

1шт.

2

H624759

MOTOR, ELECTRIC

PROPULSION MOTOR ASSEMBLY - (See figure 1-50)

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

H660498

ROD

- Adjusting

1шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

2шт.

6

195-108

WASHER,5/8"

- Flat (1/2)

2шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

195-533

WASHER,1/2", SAE

- Flat (1/2)

8шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

4шт.

11

H413898

DRIVE SPROCKET

SPROCKET - Motor

1шт.

12

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - Socket Hd (1/4-20 x 3/8 NC)

6шт.

13

H753129

CHAIN (AG)

CHAIN - (#50-59 Pitch)

1шт.

14

B12505

LINK

- Connector (#50)

1шт.

15

H188920

DRIVE SPROCKET

SPROCKET - Drive (#50)

1шт.

16

H183970

DRIVE SPROCKET

SPROCKET - Driver (#60-10 Teeth)

1шт.

17

H660472

BOX

- Reduction

1шт.

18

H747071

FLANGE

TTE - Bearing

2шт.

19

F53346

BALL BEARING

BEARING

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

3шт.

22

H187575

SHAFT

1шт.

23

H181552

KEY

- (1/4 Sq x 3)

1шт.

24

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGETTE - Bearing

2шт.

25

T36576

BALL BEARING,1.12" ID x 2.4409" OD

BEARING

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - Hex (3/8 NC - Lock)

3шт.

28

H752691

CHAIN (AG)

CHAIN - (#60 - 38 Pitch)

1шт.

29

B12509

DRAG LINK

LINK - Connector (#60)

1шт.

30

H558809

ADJUSTER

YOKE - Adjusting

1шт.

31

425-1410

JAM NUT,Jam, 5/8"-11, G5

- Hex (5/8 NC - Jam)

2шт.

32

H182378

DRIVE SPROCKET

SPROCKET - Drive

1шт.
