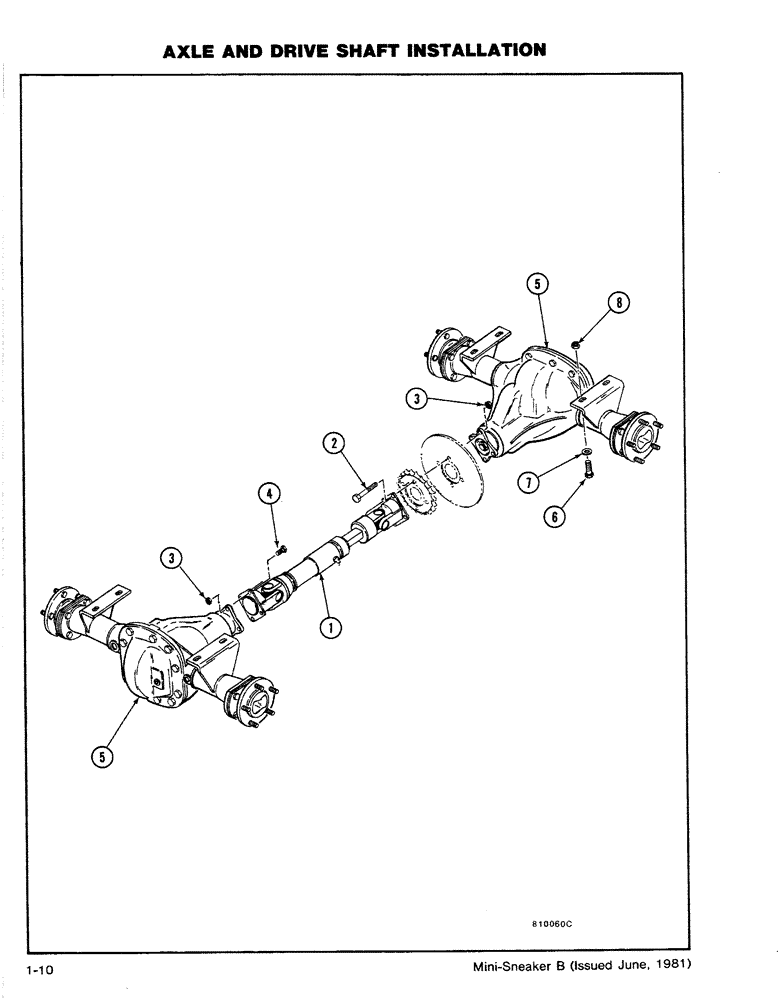

Запчасти Case CASE (1-10) - AXLE AND DRIVE SHAFT INSTALLATION (06) - POWER TRAIN

1

H645960

SHAFT

DRIVE SHAFT ASSEMBLY - (See figure 1-40), Includes: Ref. 2 - 4

1шт.

2

113-2274

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- NC HH (3/8 x 2 3/4) (Replaces 113-248)

4шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

8шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

H645945

CENTER AXLE

AXLE ASSEMBLY - (See Figure 1-44), Includes: Ref. 6 - 8

2шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

7

195-533

WASHER,1/2", SAE

- Flat (1/2)

8шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

8шт.
