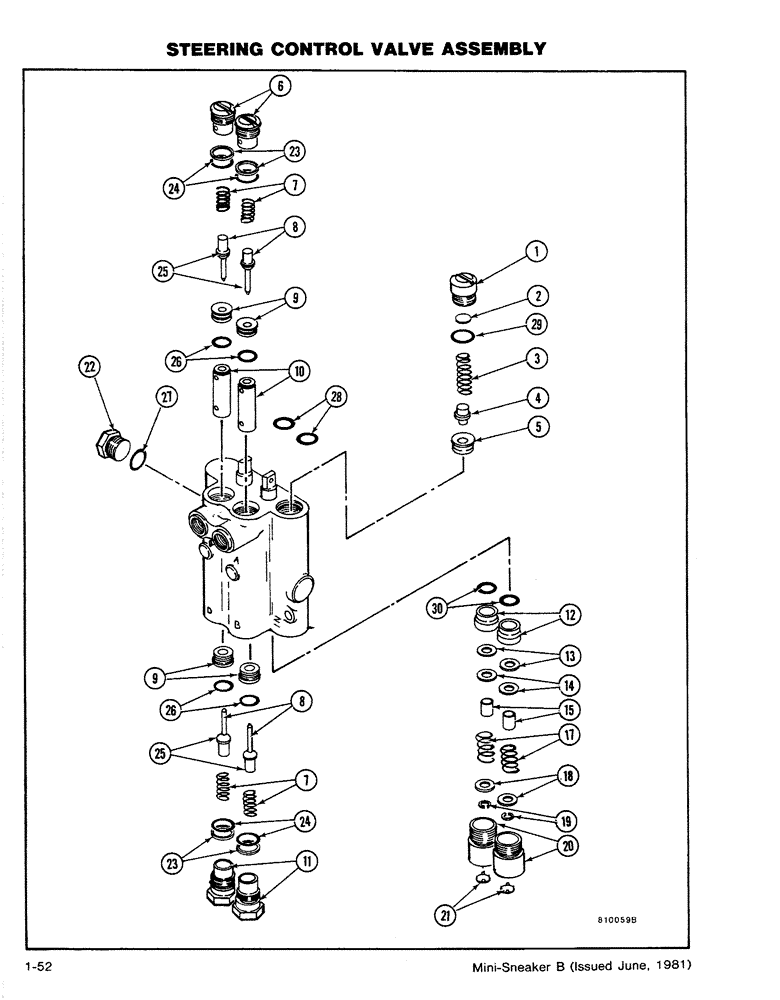

(1-52) - STEERING CONTROL VALVE ASSEMBLY

Запчасти Case CASE (1-52) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

Схема запчастей Case CASE - (1-52) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING
14
26
23
26
10
3
8
19
7
5
30
12
2
9
8
13
18
6
22
28
27
20
23
25
11
4
24
25
9
1
15
29
17
21
24
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H656454

VALVE

STEERING CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 30

1шт.

1

F37892

PLUG

- (Includes O-Ring)

1шт.

2

H220798

SHIM,.035" Thk

1шт.

2

F12267

WASHER

SHIM - (.010)

1шт.

2

H746149

SHIM,.015" Thk

1шт.

3

L33609

SPRING

- Purple

1шт.

4

FH731679

VALVE POPPET

POPPET - Relief Valve

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - Relief Valve

1шт.

6

H636977

PLUG

RETAINER - Lockout Seat

2шт.

7

H364182

SPRING

- Lockout

4шт.

8

F77048

VALVE POPPET

POPPET ASSEMBLY

4шт.

9

H636951

SEAT

- (Includes O-Ring)

4шт.

10

F8229

PLUNGER

2шт.

11

H636969

FITTING

- Lockout Port (Includes O-Ring and Backup Washers)

2шт.

12

F36304

BUSHING

2шт.

13

H253054

WASHER

1шт.

14

H253062

WASHER

2шт.

15

F36239

SPACER

- Spool

2шт.

16

DELETED

1шт.

17

F36306

SPRING

- Spool

2шт.

18

F36908

WASHER

2шт.

19

H758367

RING

- Retaining

2шт.

20

H375667

CAP

2шт.

21

205-14

HOLE PLUG BUTTON,3/8"

INSERT - Butto

2шт.

22

H758375

PLUG

- (Includes O-Ring)

1шт.

H636985

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - Backup

4шт.

24

NSS

NOT SOLD SEPARAT

O-RING

4шт.

25

F77048

VALVE POPPET

POPPET ASSEMBLY

4шт.

26

NSS

NOT SOLD SEPARAT

O-RING

4шт.

27

NSS

NOT SOLD SEPARAT

O-RING

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING

2шт.
