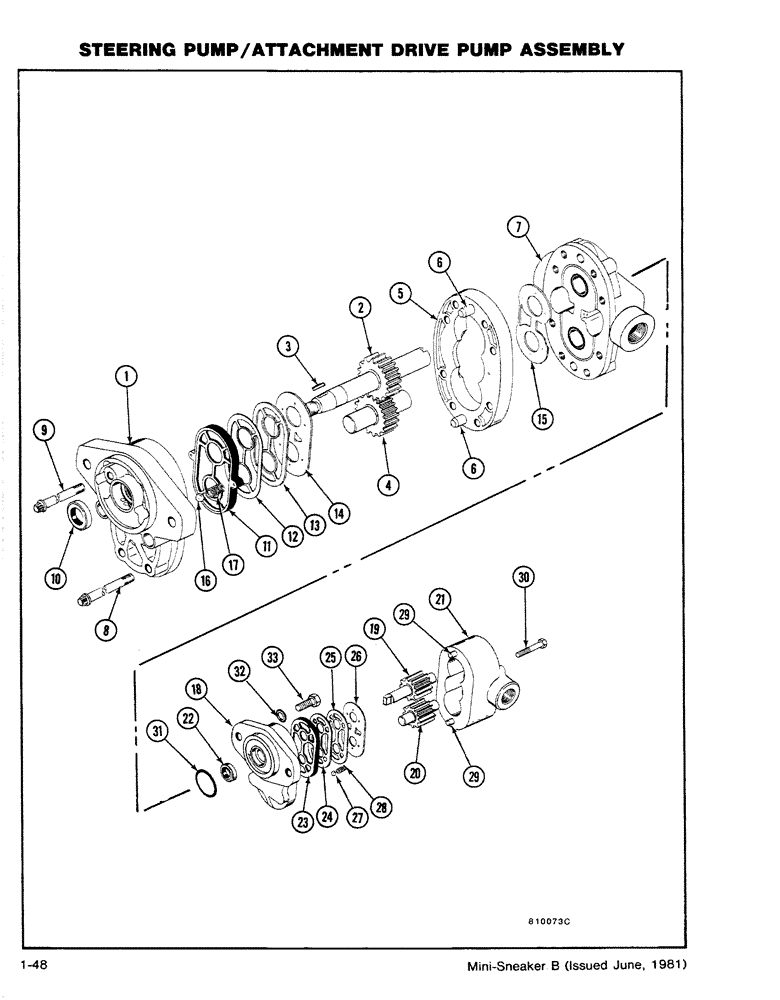

Запчасти Case CASE (1-48) - STEERING PUMP/ATTACHMENT DRIVE PUMP ASSEMBLY (05) - STEERING
№
Артикул
Название
Примечание
Количество
H650853
PUMP
STEERING PUMP/ATTACHMENT DRIVE PUMP ASSEMBLY - Tandem Pump, Includes: Ref. 1 - 33
1шт.
H588509
PUMP
ATTACHMENT DRIVE PUMP ASSEMBLY, Includes: Ref. 1 - 17
1шт.
1
D48879
COVER
FRONT PLATE ASSEMBLY
1шт.
2
H582981
GEAR
- Drive
1шт.
3
H246751
KEY
1шт.
4
H565853
GEAR WHEEL
GEAR - Idler
1шт.
5
H210724
BODY
1шт.
6
H754325
DOWEL
PIN - Dowel
2шт.
7
H582619
BACK PLATE
BACKPLATE ASSEMBLY
1шт.
8
166-51
12 PT SCREW,Flg, 3/8" - 16 x 2 1/2", Gr 8
SCREW - Cap
4шт.
9
166-52
12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8
SCREW - Cap
4шт.
D59656
GASKET KIT
KIT - Seal Repair, Includes: Ref. 10 - 17
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - Shaft
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - Diaphragm
1шт.
12
NSS
NOT SOLD SEPARAT
GASKET - Protective
1шт.
13
NSS
NOT SOLD SEPARAT
GASKET - Backup
1шт.
14
NSS
NOT SOLD SEPARAT
DIAPHRAGM
1шт.
NSS
NOT SOLD SEPARAT
O-RING - (Not Shown)
1шт.
15
NSS
NOT SOLD SEPARAT
PLATE - Thrust
1шт.
16
NSS
NOT SOLD SEPARAT
BALL - Steel
2шт.
17
NSS
NOT SOLD SEPARAT
SPRING
2шт.
H661926
PUMP
STEERING PUMP ASSEMBLY, Includes: Ref. 18 - 30
1шт.
18
H371922
PLATE ASSY.
FRONT PLATE ASSEMBLY
1шт.
19
H661934
GEAR
SHAFT - Drive
1шт.
20
F94061
SHAFT - Idler
1шт.
21
H416594
HOUSING ASSY.
HOUSING
1шт.
H218388
SEAL ASSY.
KIT - Seal Repair, Includes: Ref. 22 - 28
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL - Shaft
1шт.
23
NSS
NOT SOLD SEPARAT
SEAL - Diaphragm
1шт.
24
NSS
NOT SOLD SEPARAT
GASKET - Protective
1шт.
25
NSS
NOT SOLD SEPARAT
GASKET - Backup
1шт.
26
NSS
NOT SOLD SEPARAT
DIAPHRAGM
1шт.
27
NSS
NOT SOLD SEPARAT
BALL - Steel
2шт.
28
NSS
NOT SOLD SEPARAT
SPRING
2шт.
29
H754580
DOWEL
PIN - Dowel
2шт.
30
166-31
12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8
BOLT
4шт.
31
G32926
O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro
(Replaces H744979)
1шт.
32
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
33
26-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
Выбрано товаров: 39
