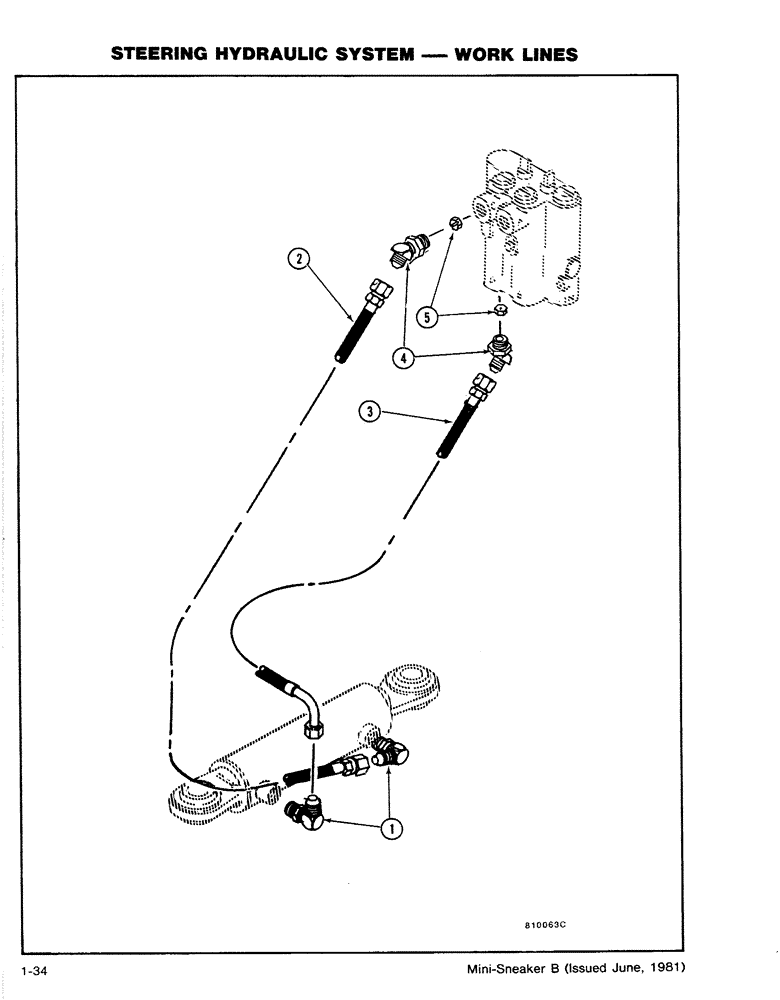

Запчасти Case CASE (1-34) - STEERING HYDRAULIC SYSTEM - WORK LINES (05) - STEERING

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.

2

H433050

HYDRAULIC HOSE,6.35 mm ID x 900.00 mm, SAE 100R2

HOSE - 1/4 x 33 (9/16 JIC Fe Swv) (Replaces H218453)

1шт.

3

H433055

HOSE ASSY.

HOSE & TUBE - 1/4 x 29 (9/16 JIC Fe SWV) (Replaces H249029)

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (9/16 ORB x 9/16 JIC M)

2шт.

5

H757815

PORT

PLATE - Orifice - "C" and "D" Ports

2шт.

5a

H433173

ORIFICE

PLATE barrel end port, refer to hyd. schematic H665018

1шт.
