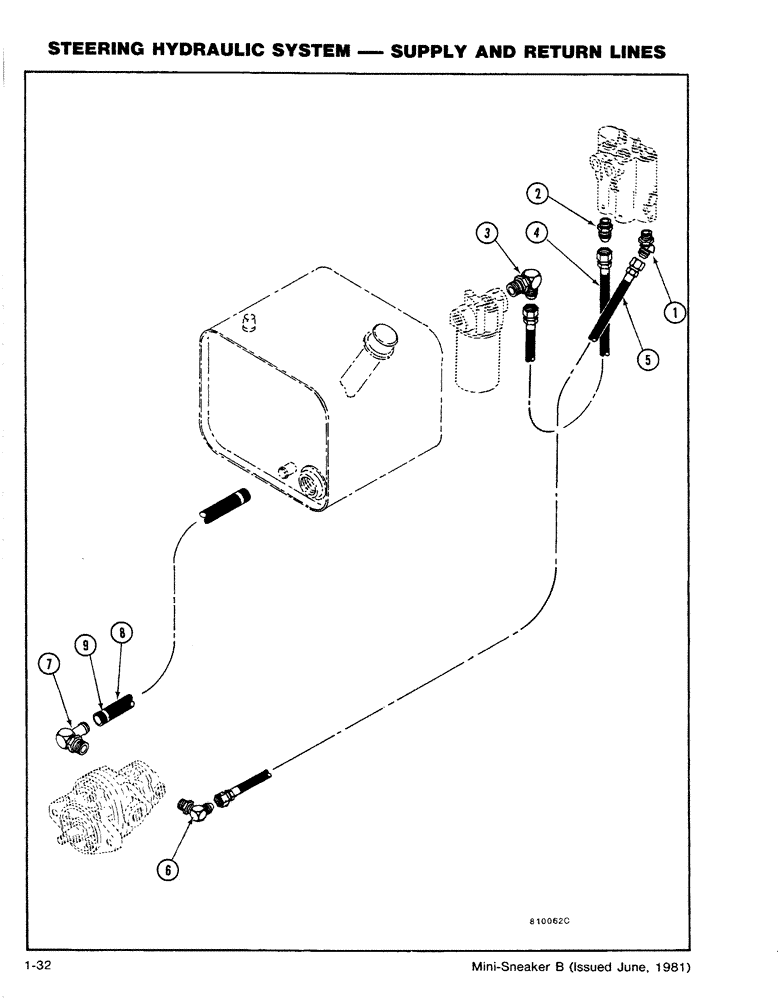

Запчасти Case CASE (1-32) - STEERING HYDRAULIC SYSTEM - SUPPLY AND RETURN LINES (05) - STEERING

1

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degrees (3/4 ORB x 3/4 JIC M)

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., (3/4 ORB x 7/8 JIC M)

1шт.

3

H432633

ELBOW

- 90 degrees (1 1/16 ORB x 7/8 JIC M) (Replaces 218-5108)

1шт.

4

H279984

HOSE

- 1/2 x 22 (7/8 JIC Fe Swv)

1шт.

5

H205930

HYDRAULIC HOSE,838.80 mm, SAE 100R1A

838.80 mm, SAE 100R1A

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 3/4 JIC M)

1шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1 1/16 ORB x 3/4 Barb)

1шт.

8

C25826

HOSE

(3/4 x 8) (Replaces H93385)

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
