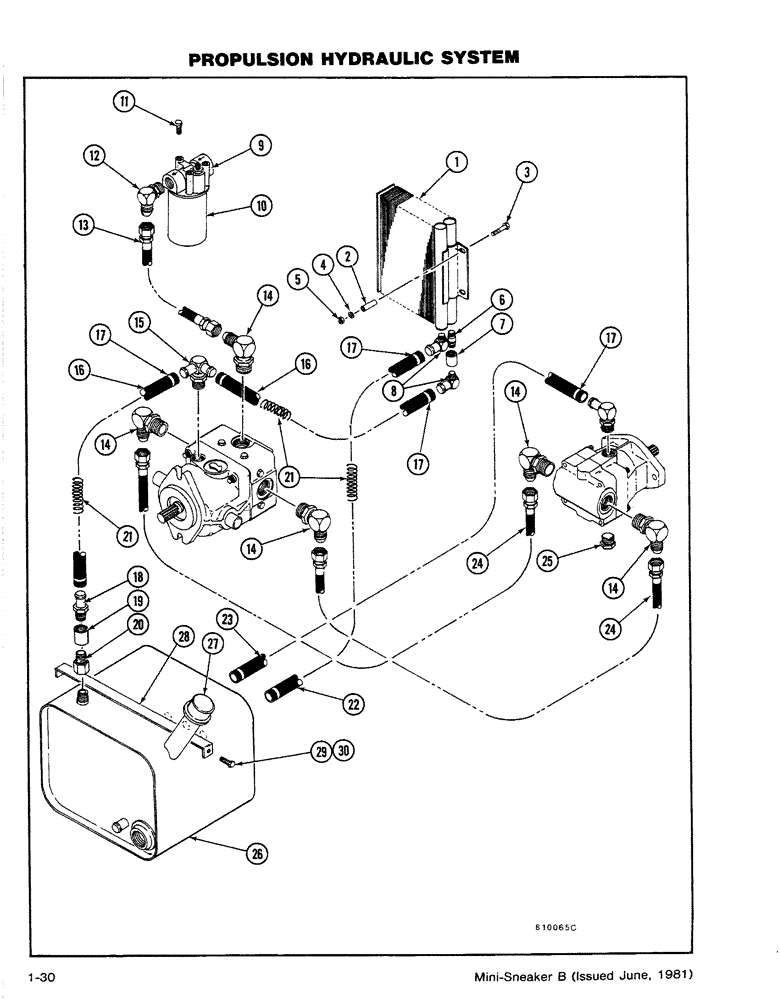

Запчасти Case CASE (1-30) - PROPULSION HYDRAULIC SYSTEM (05) - STEERING

1

H409144

COOLER, OIL

COOLER - Oil

1шт.

2

H415133

TUBE SPACER

SPACER

4шт.

3

113-416

BOLT - NC HH (1/4 x 2 1/4)

4шт.

4

195-518

WASHER,1/4", SAE

- Flat (1/4)

4шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

6

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - Pipe (3/8)

1шт.

7

221-337

COUPLING,Pipe, 3/8" NPT

- Pipe (3/8)

1шт.

8

217-333

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/8" Male NPTF

ELBOW - 90 degrees (3/8 MP x 3/4 Barb)

2шт.

H649277

FILTER ASSY

FILTER ASSEMBLY, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - Filter

1шт.

10

H335620

HYDRAULIC OIL FILTER

CARTRIDGE - Filter

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (1 1/16 ORB x 1 1/16 JIC M)

1шт.

13

H299404

HYDRAULIC HOSE,19.05 mm ID x 431.80 mm, SAE 100R1

(1 1/16 JIC Fe Swv) 19.05 mm ID x 431.80 mm, SAE 100R1

1шт.

14

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1 5/16 ORB x 1 1/16 JIC M)

5шт.

15

H339762

TEE

- (1 1/16 ORB x 3/4 Barb x 3/4 Barb)

1шт.

16

H307918

HOSE ASSY.

HOSE - (3/4 x 12)

2шт.

17

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

8шт.

18

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

19

221-339

COUPLING,Pipe, 3/4" NPT

- Pipe (3/4)

1шт.

20

H627513

VALVE

- Bypass (20 Psi)

1шт.

21

H309906

SPRING

- Hose

3шт.

22

H316331

HOSE

- (3/4 x 33)

1шт.

23

H307777

HOSE ASSY.

HOSE - (3/4 x 20)

1шт.

24

H250340

HYDRAULIC HOSE,19.05 mm ID x 660.40 mm, SAE 100R1

Suction, Used on 30+4 Special Only 19.05 mm ID x 660.40 mm, SAE 100R1

2шт.

25

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

H661322

TANK

RESERVOIR - Oil, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

TANK - Reservoir

1шт.

27

CAP - Tank

1шт.

28

H385203

STRAP

- Tank

1шт.

Ref. 28 for serial No. 1224331 and after use P/N H430157.

1шт.

29

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - Lock)

2шт.
