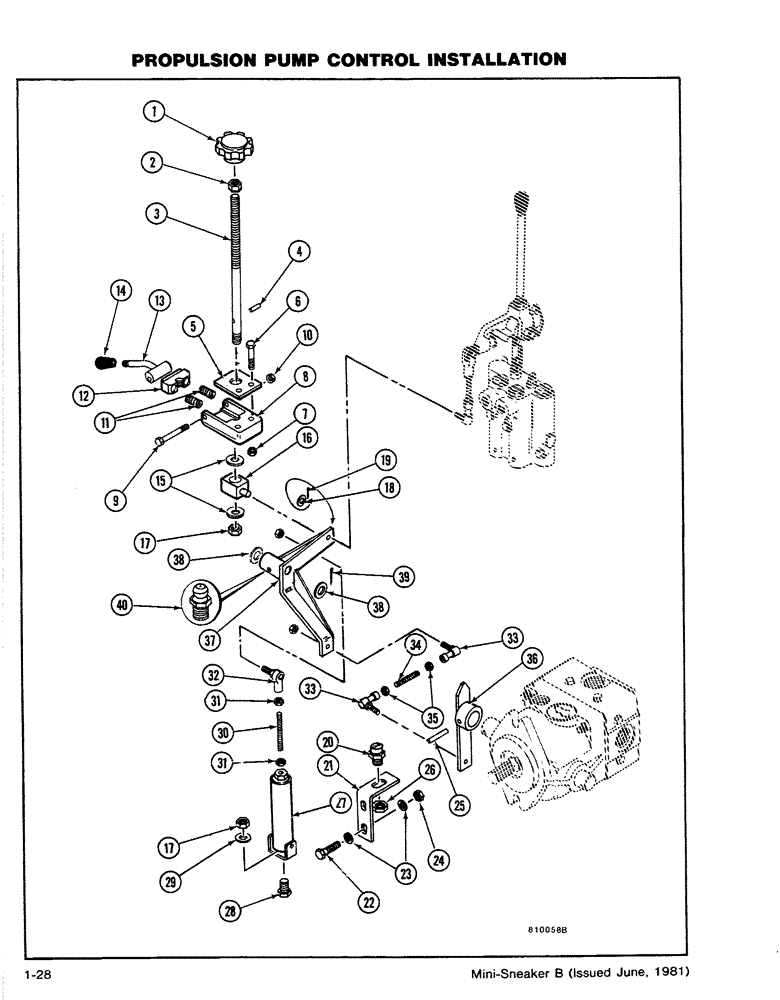

Запчасти Case CASE (1-28) - PROPULSION PUMP CONTROL INSTALLATION (05) - STEERING

1

H239004

KNOB

1шт.

2

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

3

H255158

CONTROL BLOCK

SHAFT - Control

1шт.

4

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

5

H233767

COVER ASSY

PLATE - Cover

1шт.

6

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

2шт.

8

H608885

CONTROL BLOCK

BASE - Control

1шт.

9

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- Hex Hd (1/4 x 2 3/4 NC)

1шт.

10

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

11

H253864

VALVE SPRING

SPRING

2шт.

12

H608877

BLOCK

- Half

1шт.

13

H618504

CAM

1шт.

14

A14051

GRIP

KNOB

1шт.

15

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

16

H237701

BLOCK

1шт.

If area is drilled and tapped, order H418368.

1шт.

17

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

2шт.

18

195-525

WASHER,3/8", SAE

1шт.

19

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

20

L77962

SWITCH

- Neutral

1шт.

21

H385245

MOUNTING - Neutral Switch

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

195-525

WASHER,3/8", SAE

4шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8)

2шт.

25

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

1шт.

26

129-166

JAM NUT,Jam, 9/16"-18, G5

Neutral Switch Jam, 9/16"-18, G5

1шт.

27

H382440

SPRING

- Centering

1шт.

28

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

29

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

30

H385278

LINK

- (5/16-24 All Thread)

1шт.

31

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

32

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - Ball

1шт.

33

H169920

BALL JOINT

JOINT - Ball

2шт.

34

H385286

LINK

1шт.

35

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

36

H661306

LEVER

- Pump Control

1шт.

37

H646158

LEVER

ARM - Pump

1шт.

38

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

39

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
