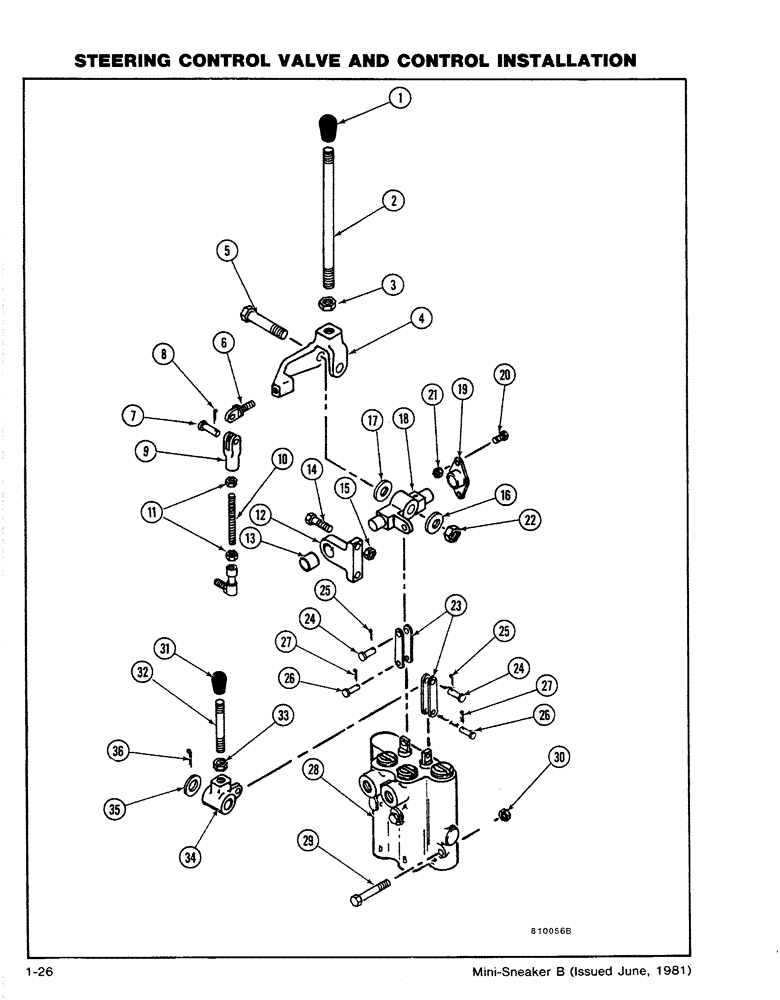

Запчасти Case CASE (1-26) - STEERING CONTROL VALVE AND CONTROL INSTALLATION (05) - STEERING

1

H182113

KNOB

1шт.

2

H242693

HANDLE

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

- Handle

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- Hex Hd (1/2 x 2 1/2 NC)

1шт.

6

H217109

BOLT

BOLT - Eye

1шт.

7

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis (1/4 x 51/64)

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

END - Clevis

1шт.

10

H385286

LINK

- All Thread (1/4-28)

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

H169920

BALL JOINT

1шт.

H558411

BEARING

BUSHING ASSEMBLY, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CASTING

1шт.

13

H151894

BUSHING

1шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

2шт.

16

H182097

WASHER

- Friction

1шт.

17

H256305

WASHER

- Friction

1шт.

18

H181974

SHAFT

- Steering

1шт.

19

H755785

FLANGED BEARING,15.88mm ID

BEARING

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

22

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/4 NC - Lock)

1шт.

23

H185066

DRAG LINK

LINK - Valve, Includes: Ref. 24 - 27

4шт.

24

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

2шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

2шт.

27

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

28

H672099

VALVE

STEERING CONTROL VALVE ASSEMBLY - (See figure 1-52) (Replaces H656454), Includes: Ref. 29 and 30

1шт.

29

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- Hex Hd (1/4 x 2 1/4 NC)

2шт.

30

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

31

A14051

GRIP

KNOB

1шт.

32

H242701

HANDLE

- Attachment Lift Control

1шт.

33

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

H275255

CRANK LEVER

CASTING - Lever

1шт.

35

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

36

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.
