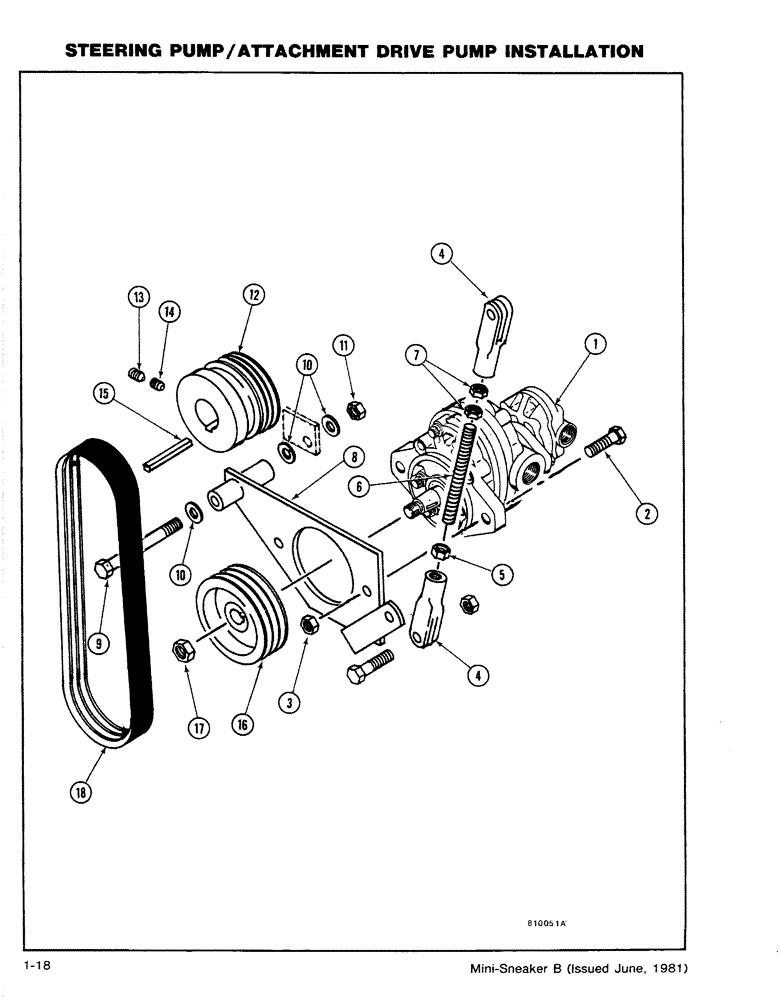

Запчасти Case CASE (1-18) - STEERING PUMP/ATTACHMENT DRIVE PUMP INSTALLATION (05) - STEERING

1

H650853

PUMP

STEERING PUMP/ATTACHMENT DRIVE PUMP ASSEMBLY - See figure 1-48)

1шт.

Not serviced seperately.

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 - Lock)

2шт.

4

H310706

CLEVIS COUPLING

CLEVIS

2шт.

5

131-168

LOCK NUT,1/2"-20, GA

NUT - NF Hex (1/2 - Lock)

1шт.

6

H311845

ADJUSTMENT SCREW

ROD - Adjusting

1шт.

7

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

H646141

PLATE

- Pump Mounting

1шт.

9

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

10

195-533

WASHER,1/2", SAE

- Flat (1/2)

3шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 - Lock)

1шт.

12

H241166

SHEAVE

- Engine

1шт.

13

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - SH (3/8 x 3/8 Cup Point)

2шт.

14

178-853

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - SH (3/8 x 3/8 Dog Point)

2шт.

15

H35527

KEY

1шт.

16

H241364

SHEAVE

- Pump

1шт.

17

131-1171

LOCK NUT,5/8"-18, GB

NUT, LOCK, 5/8"-18, GB

1шт.

18

H245464

V-BELT

Pump Drive

1шт.
