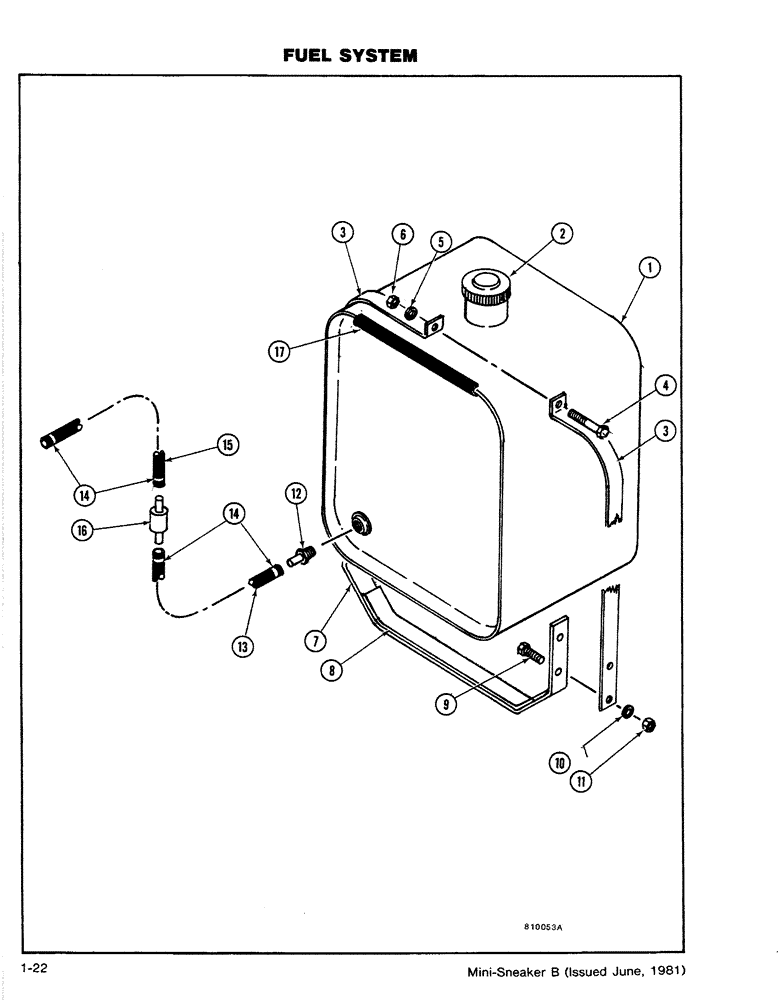

Запчасти Case CASE (1-22) - FUEL SYSTEM (03) - FUEL SYSTEM

H644187

FUEL TANK

TANK - Fuel, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TANK

1шт.

2

H151274

CYLINDER END CAP

CAP - Tank

1шт.

3

H385542

STRAP

- Tank

4шт.

4

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

5

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - Lock)

2шт.

7

H385559

SUPPORT

STRAP - Mounting

2шт.

8

H293902

BELTING

2шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

10

195-521

WASHER,5/16", SAE

- Flat (5/16)

8шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - Lock)

8шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

CONNECTOR

1шт.

13

C18274

HOSE

1шт.

14

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

15

L60515

HOSE

1шт.

16

C18274

HOSE

FILTER - Fuel

1шт.

17

647677

WINDLACE - (9" Strips)

1шт.
