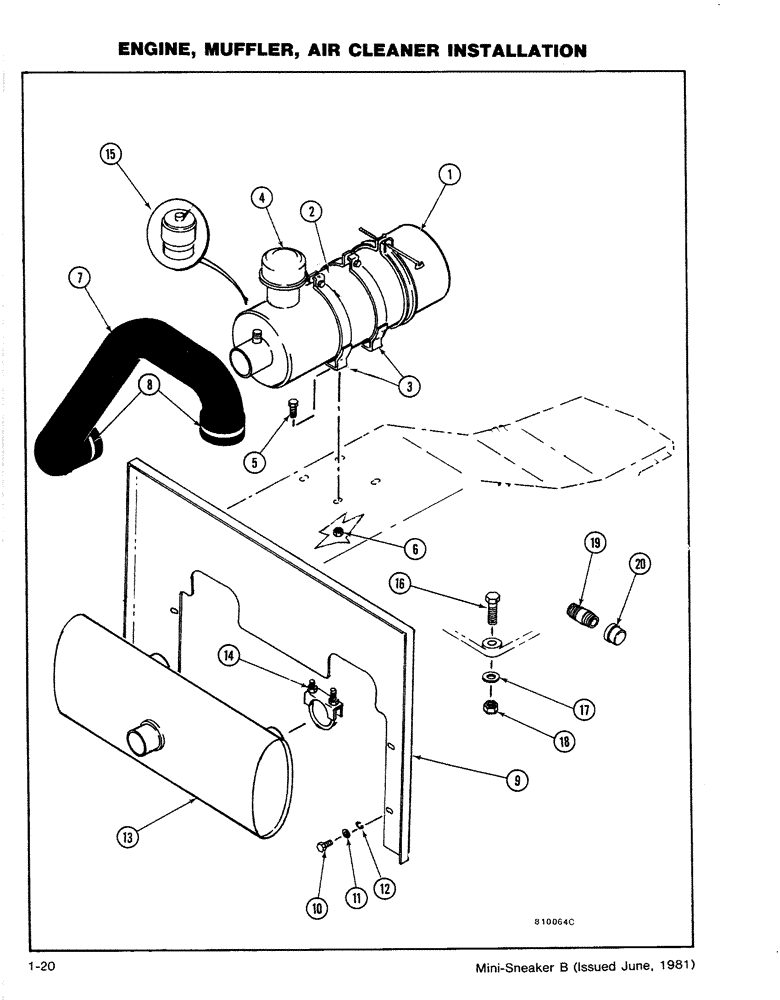

Запчасти Case CASE (1-20) - ENGINE, MUFFLER, AIR CLEANER INSTALLATION (02) - ENGINE

1

D55203

CLEANER ASSY.

AIR CLEANER ASSEMBLY, Includes: Ref. 2

1шт.

2

D48198

AIR CLEANER

ELEMENT - Air Cleaner

1шт.

3

R41654

COLLAR CLAMP

BAND - Cleaner Mounting

2шт.

4

D22685

CAP

- Air Cleaner

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - Lock)

4шт.

7

H415216

INTAKE AIR HOSE,51.00 mm ID, 57.00 mm ID x 394.00 mm, SAE 20R4, CLASS D-4

HOSE - Air Cleaner

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

9

H393827

SHROUD

- Baffle

1шт.

10

113-11

X

BOLT - NC HH (1/4 x 1/2), Engine Mounting

4шт.

11

195-518

WASHER,1/4", SAE

- Flat (1/4), Engine Mounting

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Engine mounting 1/4"

4шт.

13

H393157

MUFFLER

- Exhaust

1шт.

Replaced by P/N H432682, beginning with serial No. 1224384.

1шт.

14

L13452

CLAMP,195-3/8" L

- Muffler

1шт.

15

A59569

INDICATOR

- Air Cleaner Restriction

2шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Engine Mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

17

H274894

WASHER

- Flat (1/2)

4шт.

18

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 - Lock)

4шт.

19

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - Pipe (Oil Drain)

1шт.

20

221-526

CAP

- Pipe (Oil Drain)

1шт.
