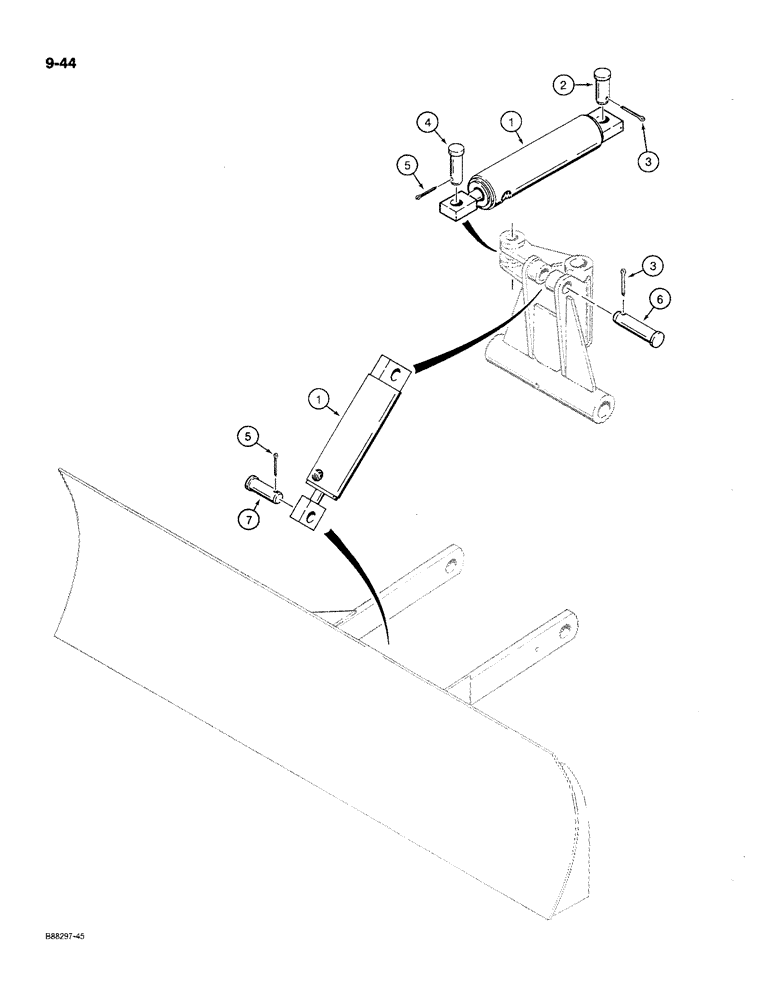

Запчасти Case MAXI-SNEAKER C (9-44) - BACKFILL BLADE CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade angle and lift, parts list Figure 8-8

2шт.

2

H71621

RETAINER

PIN - clevis, closed end of angle cylinder to rear frame

1шт.

3

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

4

H67272

PIN,25.3mm OD x 84.93mm L

PIN - clevis, rod end of angle cylinder to blade pivot assembly

1шт.

5

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

6

H71597

AXLE PIN

PIN - clevis, special, lift cylinder to blade pivot assembly

1шт.

7

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - clevis, lift cylinder to backfill blade

1шт.
