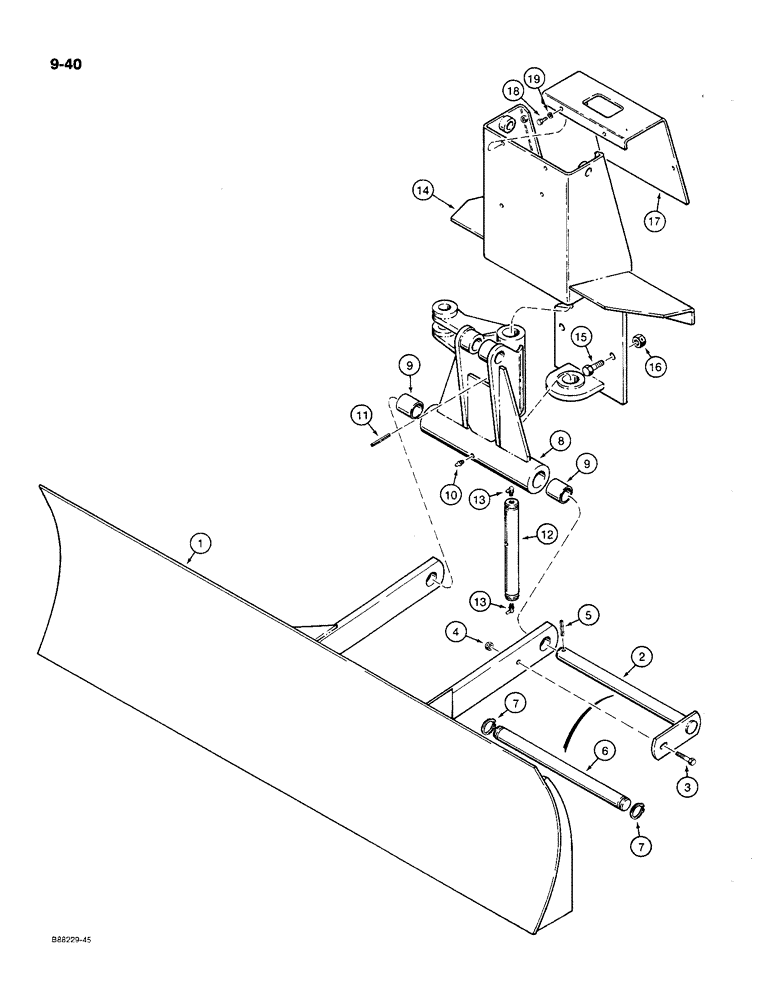

Запчасти Case MAXI-SNEAKER C (9-40) - BACKFILL BLADE AND MOUNTING, USED ON MODELS WITHOUT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H629923

BLADE

- backfill

1шт.

2

H549006

PIVOT

SHAFT - lift pivot, no longer available, order Ref. 6 shaft and Ref. 7 snap rings for service

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with Ref. 2 shaft Hex, 3/8"-16 x 1 1/2", G5

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated, Used with Ref 2 shaft

1шт.

5

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, , Used with Ref. 2 shaft 3/8" x 2", Slotted

1шт.

6

H434372

SHAFT

- lift pivot, if used

1шт.

7

D26918

SNAP RING,#125, Ext

Ring, Snap, , shaft #125, Ext

2шт.

8

H635235

PIVOT

ASSEMBLY - blade, Includes: Ref. 9

1шт.

9

H127852

BUSHING

- pivot, blade

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

11

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

12

H182527

AXLE PIN

PIN - pivot

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

14

H555862

PLATE

FRAME - backfill blade and control valve mounting

1шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

On the illustration, to the left and below Ref. 15, there is a bushing welded in. The P/N is A179077.

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

17

H557066

COVER

- backfill blade control valve

1шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
