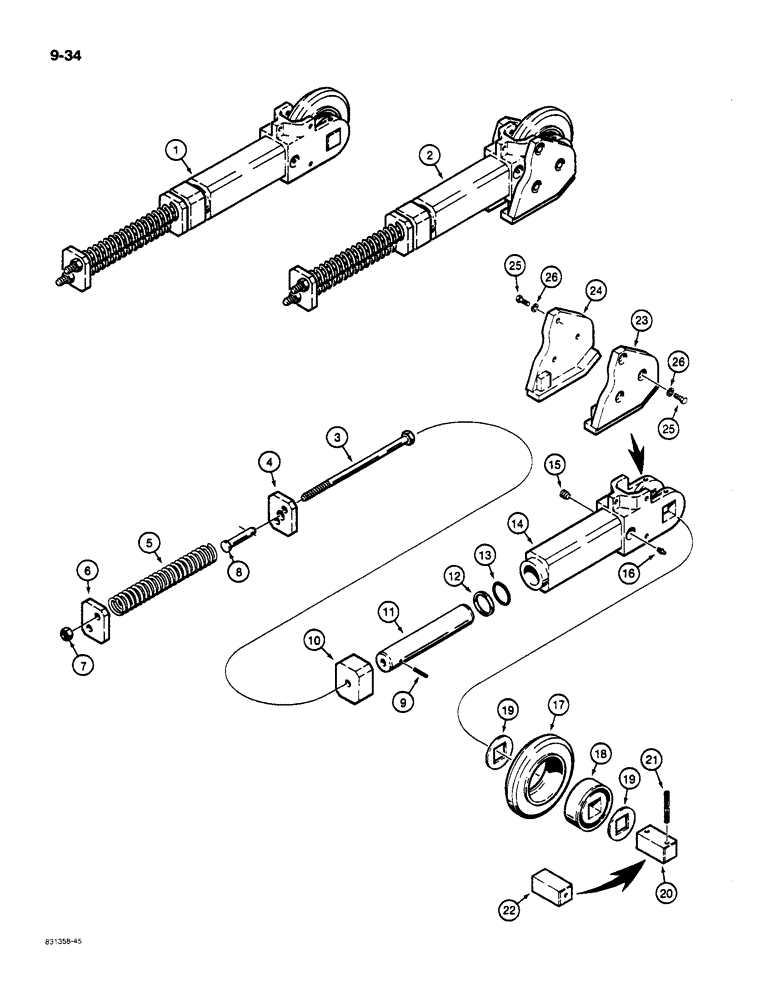

Запчасти Case MAXI-SNEAKER C (9-34) - TRENCHER BOOM END ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

1

H531087

BOOM

END ASSEMBLY - sprocket Uniboom

1шт.

2

H645358

END

BOOM END ASSEMBLY - channel Uniboom, Includes: Refs. 3-26

1шт.

H531111

VALVE SPRING

SPRING ASSEMBLY - adjusting, Includes: Ref. 3-7

1шт.

3

H90787

BOLT

BOLT - special

2шт.

4

H115238

VALVE SPRING

RETAINER - spring, front

1шт.

5

H101998

VALVE SPRING

SPRING - adjusting

2шт.

6

H119164

VALVE SPRING

RETAINER - spring, rear

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

2шт.

8

H119172

CLEVIS COUPLING

PIN - clevis, special, block retaining

1шт.

9

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

10

H115196

BEARING

BLOCK - bearing, rod

1шт.

11

H115188

PLUNGER

ROD - plunger

1шт.

12

H755009

RING

- backup, O-ring

1шт.

13

H748871

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

- plunger rod seal

1шт.

14

H115204

CASTING

BOOM END - roller mounting

1шт.

15

H114728

PLUG

- bleed

1шт.

16

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, with cap, straight, 1/8" PTF, special short

1шт.

H531384

ROLLER

ASSEMBLY - boom end, Includes: Ref. 17, 18

1шт.

17

H115261

ROLLER

- boom end, digging chain

1шт.

18

H747444

ROLLER BEARING,1.5" ID x 100 mm OD x 1.3125"

BEARING - roller

1шт.

19

H117598

WASHER

- roller, spacer

2шт.

20

H115246

SHAFT

- roller, square, used on H531087 sprocket boom end assembly

1шт.

21

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Shaft, used on H531087 sprocket boom end assembly 3/8" x 2 1/2", Slotted

2шт.

22

H381426

SHAFT

- roller, square, used on H645358 channel boom end assembly

1шт.

23

H644070

SHOE (ASSY)

SHOE - skid, right-hand, used on H645358 channel boom end assembly

1шт.

24

H644088

SHOE (ASSY)

SHOE - skid, left-hand, used on H645358 channel boom end assembly

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on H645358 channel boom end assembly Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used on H645358 channel boom end assembly 3/8"

6шт.
