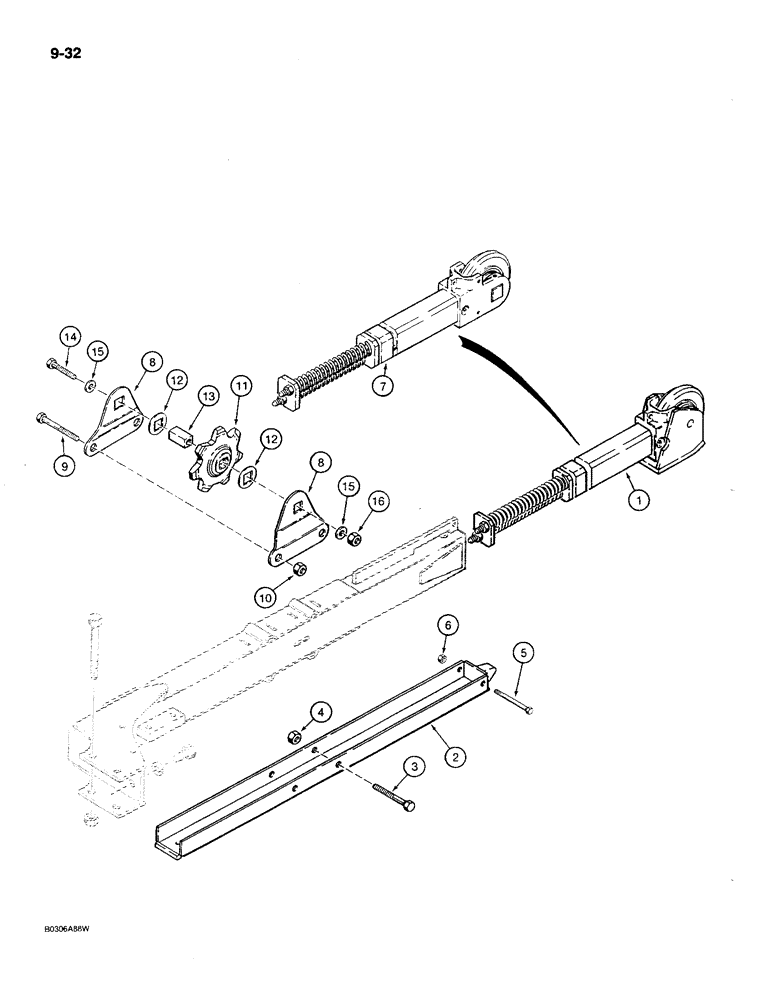

Запчасти Case MAXI-SNEAKER C (9-32) - TRENCHER BOOM END AND SPROCKET MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H645358

END

BOOM END ASSEMBLY - channel Uniboom, parts list Figure 9-34

1шт.

2

H651885

CHANNEL

- boom, 3 foot depth, mounts to bottom of boom parts

1шт.

2

H651869

CHANNEL

- boom, 4 foot depth, mounts to bottom of boom parts

1шт.

2

H648105

CHANNEL

- boom, 5 foot depth, mounts to bottom of boom parts

1шт.

3

113-649

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex head, 5/8" - 11 NC x 4-1/4", plated channel boom parts

2шт.

4

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, Channel boom parts

2шт.

5

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex head, 1/2" - 13 NC x 4-1/4", plated channel boom parts

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated channel boom parts

1шт.

7

H531087

BOOM

END ASSEMBLY - sprocket Uniboom, parts list Figure 9-34 parts

1шт.

8

H388959

BRACKET

- sprocket mounting boom parts

2-4-8шт.

9

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Sprocket boom parts Hex, 5/8"-11 x 4 1/2", G5

2-4-8шт.

10

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprocket boom parts

2-4-8шт.

11

H531251

PINION

SPROCKET ASSEMBLY - boom, includes refs. 10-12 on parts Figure 9-30 sprocket boom parts

1-2-4шт.

12

H117606

WASHER

- sprocket boom parts

2-4-8шт.

13

H251033

BOOM

SHAFT - sprocket mounting boom parts

1-2-4шт.

14

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Sprocket boom parts Hex, 5/8"-11 x 3 1/4", G5

1-2-4шт.

15

195-108

WASHER,5/8"

- flat, , plated sprocket boom parts 5/8"

2-4-8шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, Sprocket boom parts

1-2-4шт.
