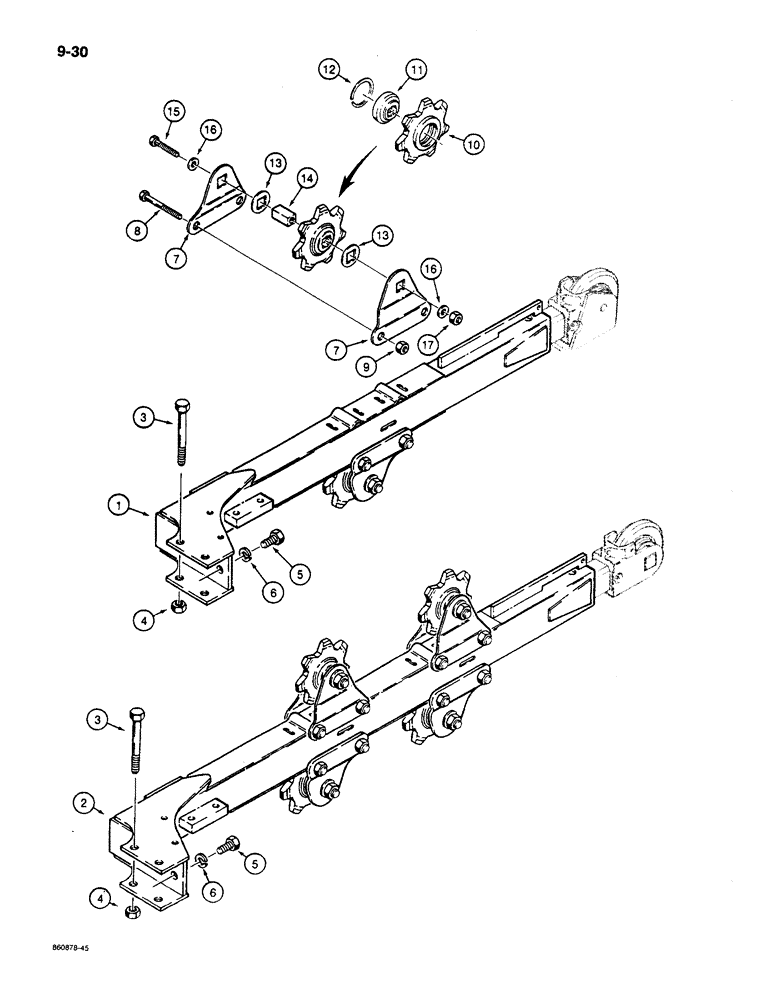

Запчасти Case MAXI-SNEAKER C (9-30) - TRENCHER BOOMS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H651794

BOOM

UNIBOOM - 3 foot depth, channel or sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom, see Figure 9-33 for channel

1шт.

1

H651786

BOOM

UNIBOOM - 4 foot depth, channel or sprocket, uses 1 sprocket on top and 1 sprocket or channel on bottom, see Figure 9-33 for channel

1шт.

(H651786) does not come with sprockets.

1шт.

2

H648154

BOOM

UNIBOOM - 5 foot depth, sprocket, uses 2 sprockets on top and 2 sprockets on bottom, see Figure 9-33 for channel

1шт.

3

113-2702

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex head, 3/4" - 10 NC x 6", special, grade 8

2шт.

4

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

5

113-798

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex head, 3/4" - 10 NC x 1-1/2", special, grade 8

2шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

H388959

BRACKET

- sprocket mounting

2-4-8шт.

8

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2-4-8шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

2-4-8шт.

H531251

PINION

SPROCKET ASSEMBLY - boom, Includes: Ref. 10-12

1-2-4шт.

10

H115683

DRIVE SPROCKET

SPROCKET - boom

1шт.

11

H747139

BALL BEARING

BEARING - sprocket

1шт.

12

H33837

RING

SNAP RING - bearing retaining

1шт.

13

H117606

WASHER

- sprocket

2-4-8шт.

14

H251033

BOOM

SHAFT - sprocket mounting

1-2-4шт.

15

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1-2-4шт.

16

195-108

WASHER,5/8"

- flat, , plated 5/8"

2-4-8шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1-2-4шт.
