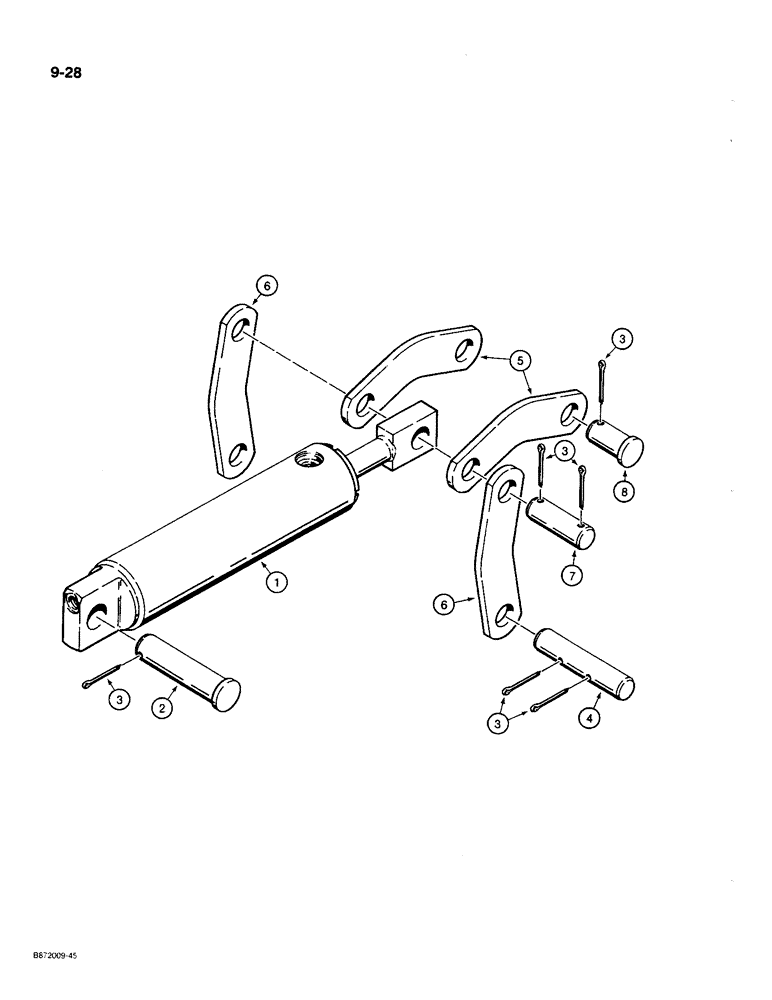

Запчасти Case MAXI-SNEAKER C (9-28) - TRENCHER BOOM LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - trencher boom lift, parts list Figure 8-8

1шт.

2

H334086

CLEVIS

PIN - cylinder retaining, closed end of boom lift cylinder

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

6шт.

4

H65029

AXLE PIN

PIN - retaining, boom link to front frame

1шт.

5

H406835

DRAG LINK

LINK - boom lift cylinder to boom cylinder crank

2шт.

6

H406520

DRAG LINK

LINK - long, boom lift cylinder to front frame

2шт.

7

H185652

AXLE PIN

PIN - links to rod end of boom lift cylinder

1шт.

8

H65003

AXLE PIN

PIN - link to boom crank

1шт.
