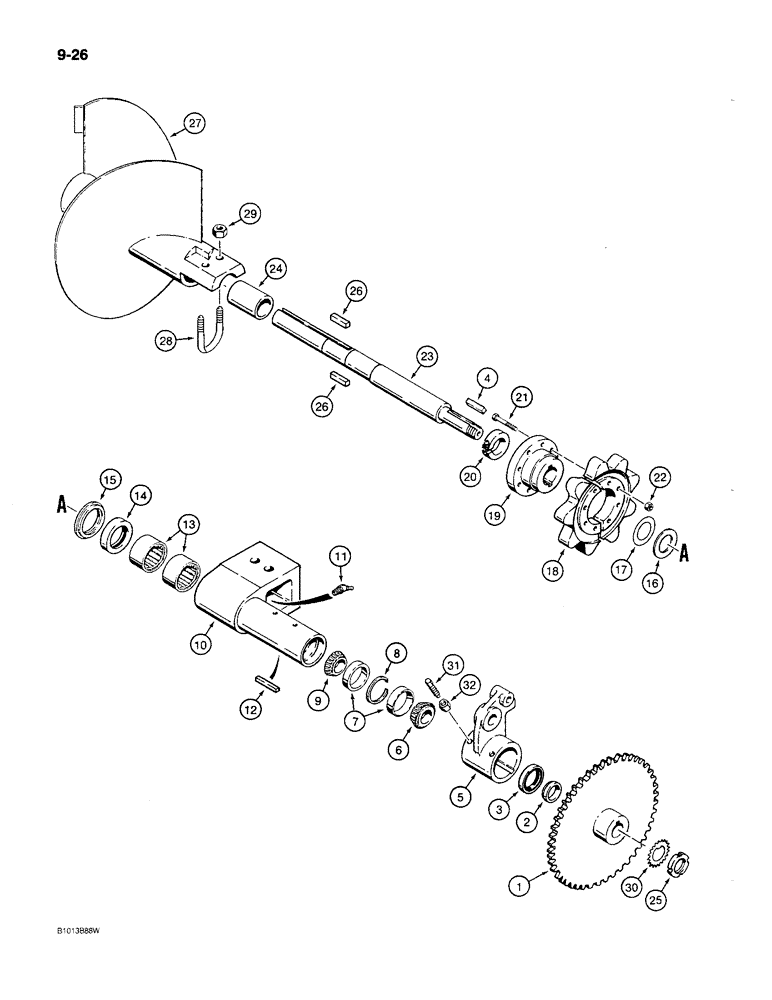

Запчасти Case MAXI-SNEAKER C (9-26) - TRENCHER BOOM MOUNTING SHAFT, SPROCKET, AND AUGER, USED ON MODELS WITH P.I.N. 1231939 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

H666974

DRIVE SPROCKET

SPROCKET - driven

1шт.

2

H433176

SPACER

- sprocket

1шт.

3

820213C1

OIL SEAL

SEAL - boom crank

1шт.

4

H433175

KEY

- boom crank

1шт.

5

H406504

CRANK

- boom cylinder

1шт.

BRONZE BUSHING THAT GO ON BOTH SIDES OF THE CRANK CAN BE FOUND ON FIGURE 9-2, REFS 2 AND 3.

1шт.

6

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - tapered roller, outer

1шт.

7

H433209

BEARING CUP

CUP - tapered roller bearing

2шт.

8

H91025

RETAINER

- bearing

1шт.

9

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - tapered roller, inner

1шт.

10

H628602

BOOM

PIVOT - boom mounting

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, special short, 1/8" NPT

1шт.

12

H33290

KEY

- square, 1/4" x 2-1/4"

1шт.

13

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle

2шт.

14

H749085

SEAL

- grease

1шт.

15

H53546

SEAL

SEAL - split sprocket

1шт.

16

H411728

SHIM,1.587mm Thk

Shaft, Outer 1.587mm Thk

1шт.

17

H411736

SHIM,.812mm Thk

Shaft, Inner .812mm Thk

1шт.

18

H148569

DRIVE SPROCKET

SPROCKET - split, digging chain drive, set of two

1шт.

19

H333740

HUB CAP

HUB - sprocket mounting

1шт.

20

H353722

COLLAR CLAMP

RING - retaining, drive shaft

1шт.

21

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

22

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

8шт.

H671321

SHAFT

ASSEMBLY - trencher drive, Includes: Ref. 23-25

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - trencher drive

1шт.

24

H70789

SLEEVE CYLINDER

SLEEVE - bearing race

1шт.

24 WHEN USED W/ H748111 BRG., SLEEVE MUST BE GROUND DOWN TO 1.9994/1.9988 PER H586230

1шт.

PRINT. SLEEVE DIM. 2.012/2.008" O.D., 1.625/1.6250" I.D. x 2.875" LONG

1шт.

25

131-1035

LOCK NUT,Bearing, 1.3780" Bore

NUT - hex, self-locking, special for ball bearings

1шт.

26

H433175

KEY

- drive shaft

2шт.

27

H502526

AUGER

- dirt

1шт.

28

H34439

U-BOLT

- auger retaining

1шт.

29

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

30

192-307

LOCK WASHER,Type W-07

WASHER - bearing lock, SAE No. W07

1шт.

192-307 washer should be 192-306 on shaft H520411

1шт.

31

H33746

SET SCREW,1/2" - 20 x 2 1/4"

- set, boom crank

2шт.

32

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.
