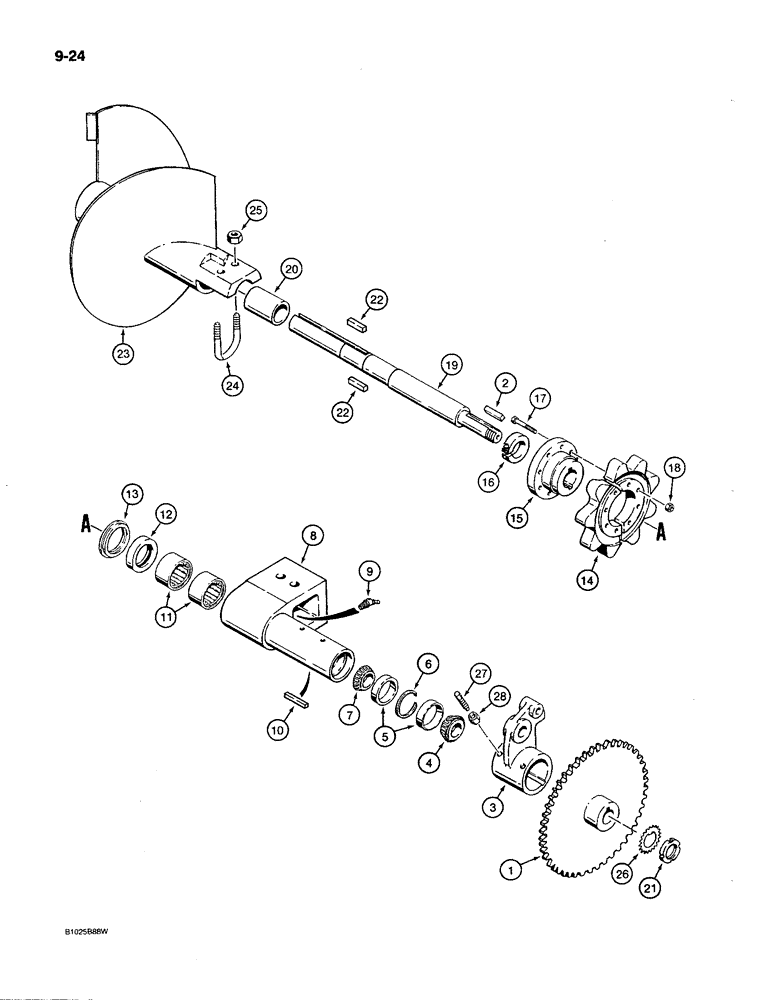

Запчасти Case MAXI-SNEAKER C (9-24) - TRENCHER BOOM MOUNTING SHAFT, SPROCKET, AND AUGER, USED ON MODELS PRIOR TO P.I.N. 1231939 (09) - CHASSIS/ATTACHMENTS

1

H652248

SPROCKET ASSY.

SPROCKET - driven

1шт.

2

H70045

KEY

- square, 3/8" x 1-3/4" long

1шт.

3

H109421

LEVER

CRANK - boom cylinder

1шт.

4

T17079

CUP

BEARING - tapered roller, outer

1шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing

2шт.

6

H91025

RETAINER

- bearing

1шт.

7

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

BEARING - tapered roller, inner

1шт.

8

H628602

BOOM

PIVOT - boom mounting

1шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, special short, 1/8" NPT

1шт.

10

H33290

KEY

- square, 1/4" x 2-1/4"

1шт.

11

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle

2шт.

12

H749085

SEAL

- grease

1шт.

13

H53546

SEAL

SEAL - split sprocket

1шт.

14

H148569

DRIVE SPROCKET

SPROCKET - split, digging chain drive, set of two

1шт.

15

H333740

HUB CAP

HUB - sprocket mounting

1шт.

16

H353722

COLLAR CLAMP

RING - retaining, drive shaft

1шт.

17

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

18

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

8шт.

H520411

SHAFT

ASSEMBLY - trencher drive, Includes: Ref. 19-21

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - trencher drive

1шт.

20

H70789

SLEEVE CYLINDER

SLEEVE - bearing race

1шт.

21

131-1034

BEARING LOCK NUT,Bearing, 1.1811" Bore

NUT - hex, self-locking, special for ball bearings

1шт.

22

H70045

KEY

- square, 3/8" x 1-3/4" long

2шт.

23

H502526

AUGER

- dirt

1шт.

24

H34439

U-BOLT

- auger retaining

1шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

26

192-306

LOCK WASHER,Type W-06

WASHER - bearing lock, SAE No. W06

1шт.

27

H33746

SET SCREW,1/2" - 20 x 2 1/4"

- set, boom crank

2шт.

28

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.
