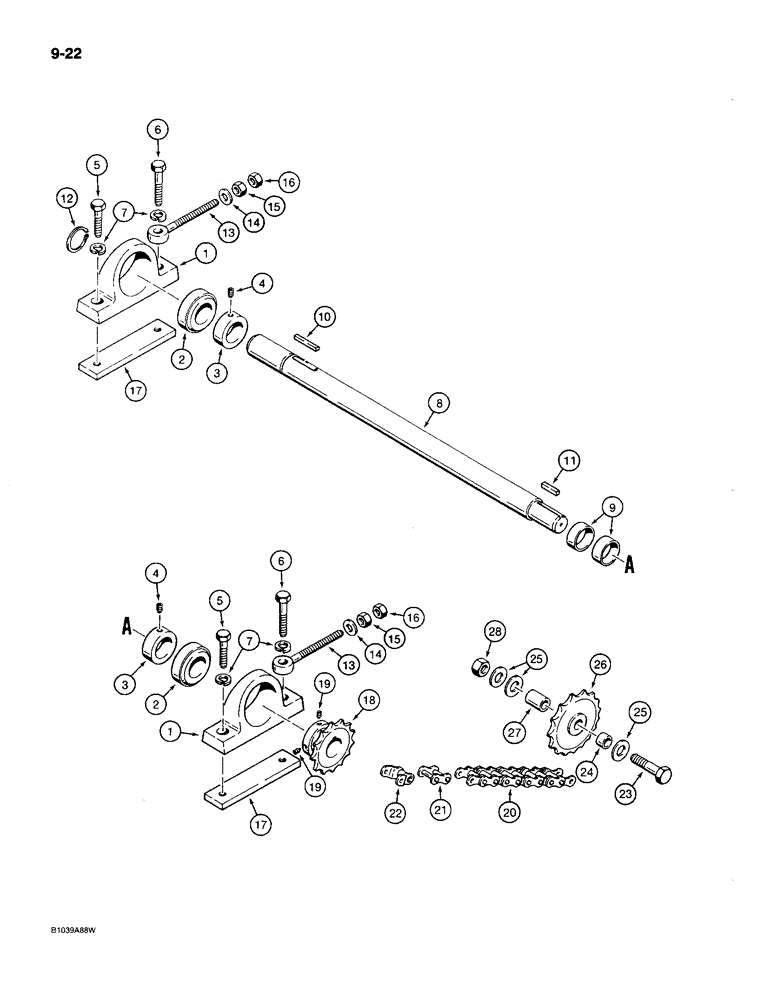

Запчасти Case MAXI-SNEAKER C (9-22) - JACKSHAFT AND TRENCHER DRIVE CHAIN (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
H747428
BEARING,34.93 mm ID x 55.58 mm OD x 47.63 mm
ASSEMBLY - pillow block, Includes: Ref. 1-4
2шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - bearing
1шт.
2
F90485
BEARING ASSY
BEARING AND LOCK RING - pillow block, Includes: Ref. 3, 4
1шт.
3
NSS
NOT SOLD SEPARAT
RING - lock, bearing
1шт.
4
NSS
NOT SOLD SEPARAT
SCREW - set, bearing
1шт.
5
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
6
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
- hex head, 1/2" - 13 NC x 2-1/2", plated
2шт.
7
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
H652024
SHAFT
JACKSHAFT ASSEMBLY - trencher, Includes: Ref. 8, 9
1шт.
8
NSS
NOT SOLD SEPARAT
JACKSHAFT - trencher
1шт.
9
H756692
BEARING
BUSHING - jackshaft, pressed on, must be machined after installation
2шт.
10
H115790
KEY
- special, 1/4" x 5/16" x 1-13/16" long
1шт.
11
T13450
KEY
- square, 1/4" x 1-1/4" long
1шт.
12
A7409
SNAP RING,#137, Ext
RING, Snap, , jackshaft #137, Ext
1шт.
13
H49627
BOLT
EYEBOLT - jackshaft adjusting
2шт.
14
195-533
WASHER,1/2", SAE
- flat, 1/2", plated
2шт.
15
129-125
NUT,1/2"-20, G5
2шт.
16
129-165
JAM NUT,Jam, 1/2"-20, G5
2шт.
17
H381814
BLOCK
- tapped
2шт.
18
H397125
DRIVE SPROCKET
SPROCKET - drive, Includes: Ref. 19
1шт.
19
83-48
SET SCREW,Hex Soc, 1/4"-20 x 1/2"
SCREW - set, hex socket, cup point, 1/4" - 20 NC x 1/2"
2шт.
20
H757864
CHAIN (AG)
CHAIN - drive, trencher
1шт.
21
60961
DRAG LINK
LINK - chain connector
1шт.
22
654439R91
LINK
- offset, drive chain (replaces B12510)
1шт.
23
113-626
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
24
H142679
SPACER
- idler sprocket, short
1шт.
25
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - flat, 5/8", hardened
3шт.
26
H747436
DRIVE SPROCKET
SPROCKET - idler
1шт.
27
H397158
SPACER
- idler sprocket, long
1шт.
28
131-1130
LOCK NUT,5/8"-11, GA
NUT - hex, self-locking, 5/8" - 11 NC, plated
1шт.
Выбрано товаров: 30
