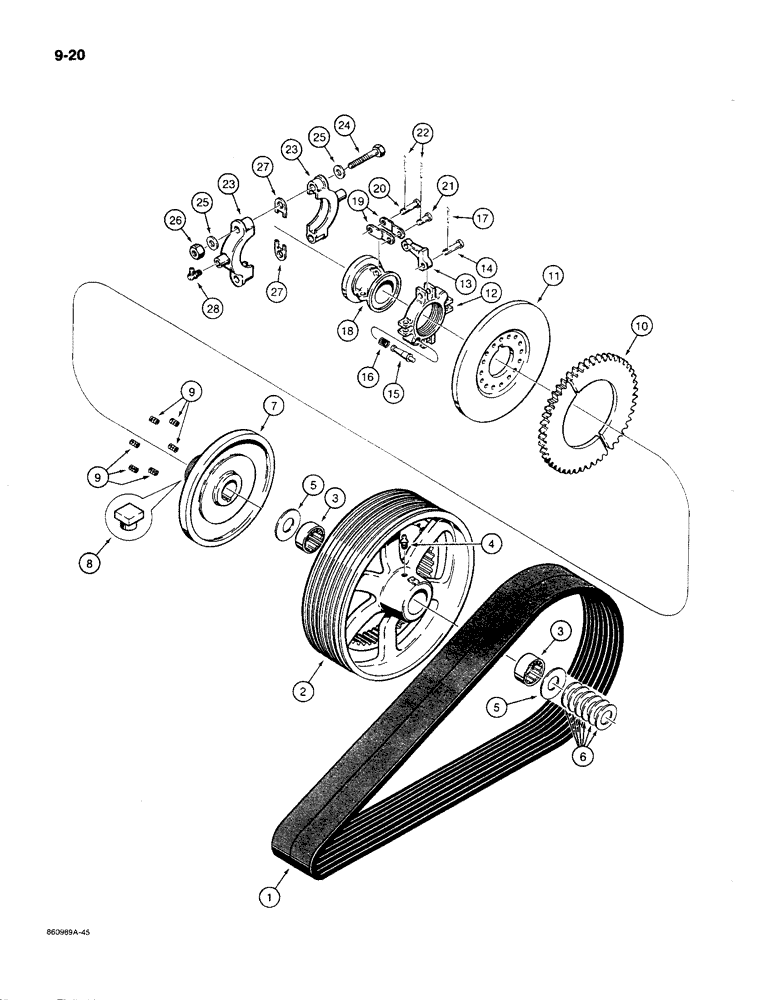

Запчасти Case MAXI-SNEAKER C (9-20) - TRENCHER DRIVE BELT AND CLUTCH (09) - CHASSIS/ATTACHMENTS

1

H396069

SET OF BELTS

SET OF 2 BELTS, Drive

1шт.

H595819

SHEAVE

ASSEMBLY - driven, clutch, no longer available, service with individual components, Includes: Ref. 2-4

1шт.

2

H273334

SHEAVE

- driven, clutch

1шт.

3

H756684

ROLLER BEARING

BEARING AND SEAL - sheave

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

5

H362541

WASHER

- thrust, 1-13/32" ID x 2-3/4" O.D.

1шт.

6

H34579

WASHER

- thrust, 1-3/8" ID x 2-3/8" O.D.

1шт.

H546812

CLUTCH

ASSEMBLY - trencher, no longer available, service with individual components, Includes: Ref. 7-27

1шт.

7

H547323

PLATE ASSY.

HUB AND BACK PLATE - clutch

1шт.

8

H111161

AXLE PIN

PIN - hub

1шт.

9

H111260

VALVE SPRING

SPRING - releasing, clutch

6шт.

10

H111245

PLATE

SET - driving, clutch, set of two

1шт.

11

H111252

PLATE ASSY.

PLATE - floating, clutch

1шт.

H529362

YOKE

ASSEMBLY - adjusting, clutch, Includes: Ref. 12-17

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE - adjusting

1шт.

13

H111179

LEVER

FINGER - yoke

4шт.

14

H111187

AXLE PIN

PIN - finger

4шт.

15

H111195

AXLE PIN

PIN - adjusting lock

1шт.

16

A26944

VALVE SPRING

SPRING - adjusting lock pin

1шт.

17

A43382

PIN, SPLIT (COTTER)

PIN - cotter, special, pin retaining, 1/8" x 1/2" long

4шт.

H547315

SLEEVE CYLINDER

SLEEVE ASSEMBLY - sliding, clutch, Includes: Ref. 18-27

1шт.

18

B50846

SLEEVE

- sliding

1шт.

19

F11937

DRAG LINK

LINK - finger

8шт.

20

H111229

AXLE PIN

PIN -, Serial Range: link-sleeve

4шт.

21

F11938

AXLE PIN

PIN -, Serial Range: link-finger

4шт.

22

A43382

PIN, SPLIT (COTTER)

PIN - cotter, special, pin retaining, 1/8" x 1/2" long

8шт.

A31140

COLLAR

ASSEMBLY - clutch sleeve, Includes: Ref. 23-27

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR - sleeve

2шт.

24

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5

2шт.

25

D48341

WASHER

- special

4шт.

26

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

27

NSS

NOT SOLD SEPARAT

SPACER - collar

1шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.
