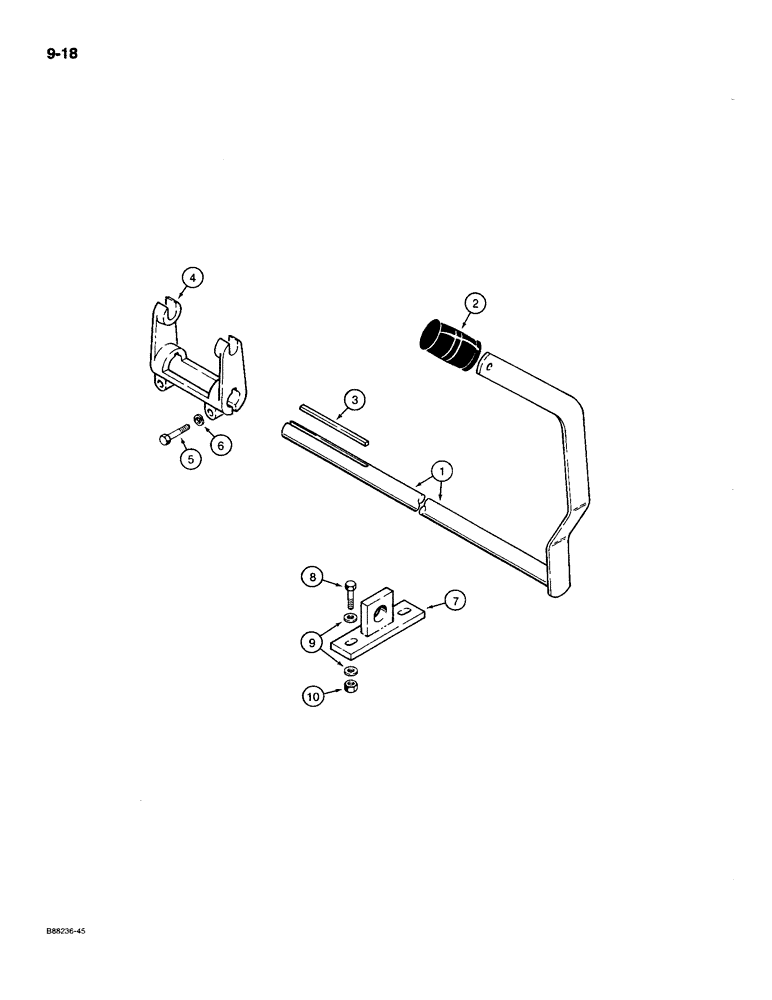

Запчасти Case MAXI-SNEAKER C (9-18) - TRENCHER CLUTCH CONTROL LEVER (09) - CHASSIS/ATTACHMENTS

1

H560508

SHAFT

LEVER - clutch

1шт.

2

H33332

GRIP

- lever

1шт.

3

H112292

KEY

- square

1шт.

4

H215608

CONTROL BLOCK

YOKE - clutch

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

H665042

BRACKET

- clutch lever, used on models with P.I.N. and after, Start Serial: 1203135

1шт.

For models before P.I.N. 1203135 the clutch lever mounting bracket was part of the front frame and was not a serviceable ref.

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
