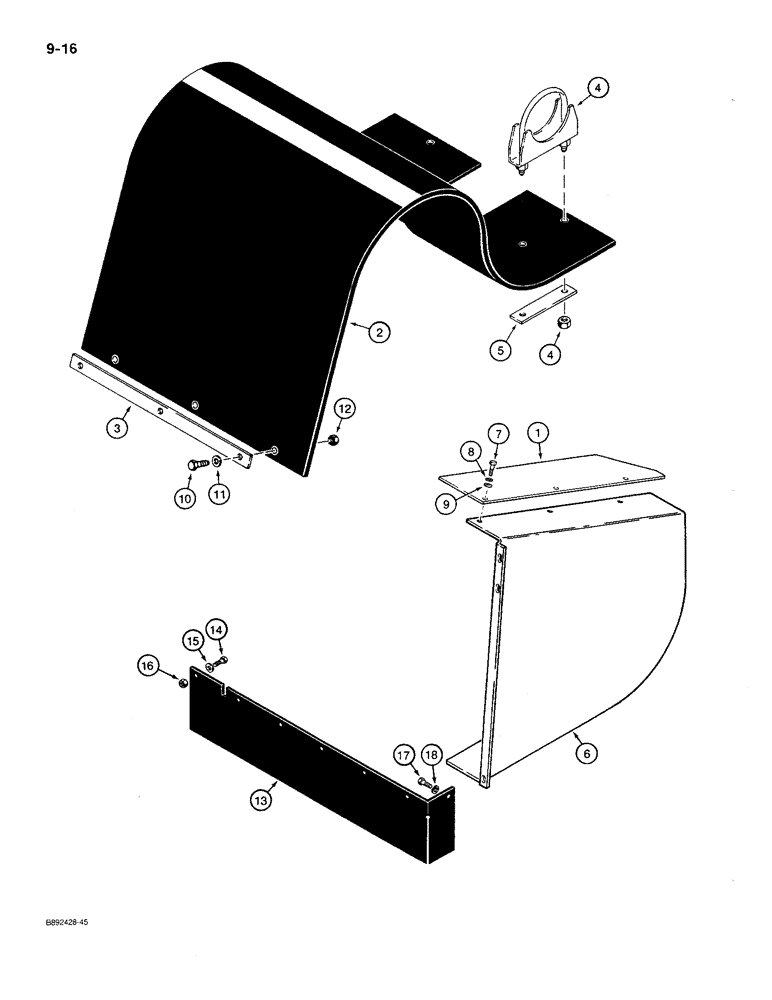

Запчасти Case MAXI-SNEAKER C (9-16) - DRIVE CHAIN GUARD AND DIRT DEFLECTOR, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

H436313

PLATE

DEFLECTOR - dirt

1шт.

2

H434108

SHUTTER

FLAP - dirt, deflector

1шт.

3

H422154

STRAP

PLATE - mounting, deflector

1шт.

4

H434145

CLAMP

- dirt deflector, includes hardware

2шт.

5

H434110

LARGE PLATE

PLATE - clamp

2шт.

6

H557199

GUARD

- dirt, chain drive

1шт.

7

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

3шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

11

H426775

WASHER

- flat, 5/16" bolt size, hardened, plated

3шт.

12

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

13

H90688

FLAP

- dirt, auger baffle, if used

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

7шт.

15

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

7шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated, if used

7шт.

17

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head, self-tapping, 5/16" - 18 NC x 3/4", plated

1шт.

18

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
