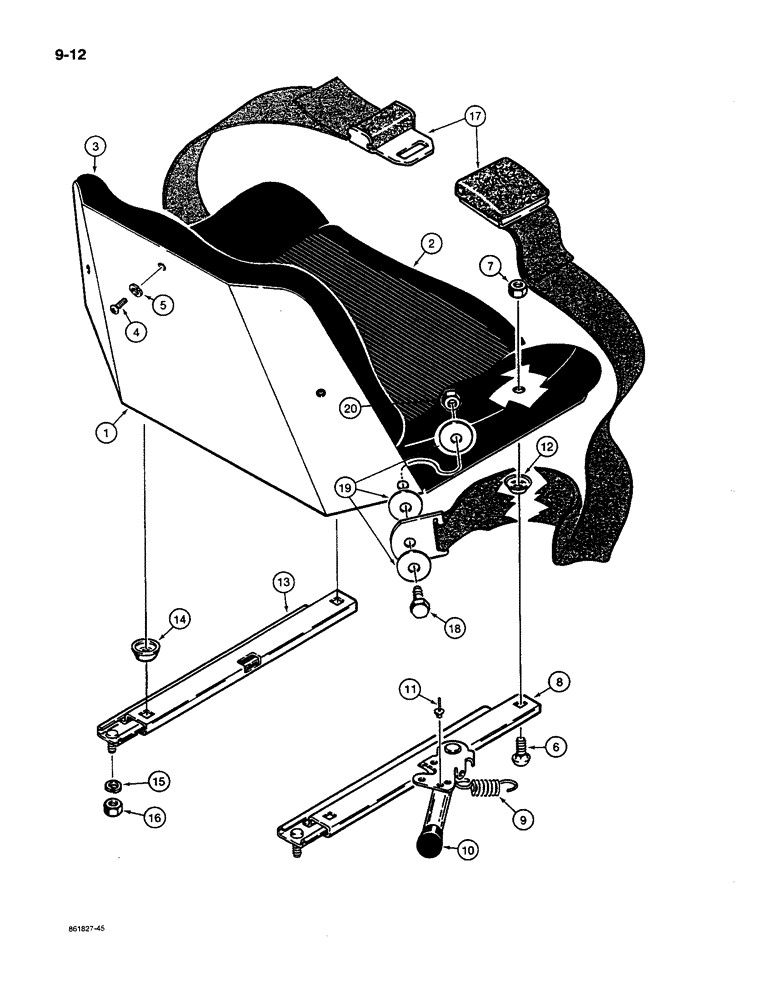

Запчасти Case MAXI-SNEAKER C (9-12) - SEAT AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

H669457

SEAT

ASSEMBLY - operators, Includes: Ref. 1-16

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

H429654

CUSHION

- seat (replaces N9036)

1шт.

3

H429647

CUSHION

- backrest

1шт.

4

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, Phillips head, 1/4" - 20 NC x 3/4", plated

5шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

6

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - carriage, 5/16" - 24 NF x 7/8", plated

4шт.

7

129-122

NUT,5/16"-24, G5

4шт.

N8322

SLIDE

- right-hand, with handle, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

L35503

SPRING

- latch return

1шт.

10

S115783

HANDLE

- slide adjusting

1шт.

11

151-538

RIVET,Pop, 3/16" x .575"

- pop, handle

2шт.

12

A45111

SPACER

WASHER - special, cup spacer

2шт.

13

N8321

ADJUSTER

SLIDE - left-hand, without handle

1шт.

14

A45111

SPACER

WASHER - special, cup spacer

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

H594564

SAFETY BELT ,3.00" W

Non-retractable, If used 3.00" W

1шт.

17

D75997

SAFETY BELT ,1.80" W

Non-retractable, If used 1.80" W

1шт.

18

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

19

H277566

WASHER

- flat, special, used with H594564 seat belt

6шт.

19

195-105

WASHER,7/16"

- flat, , used with D75997 seat belt 7/16"

6шт.

20

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.
