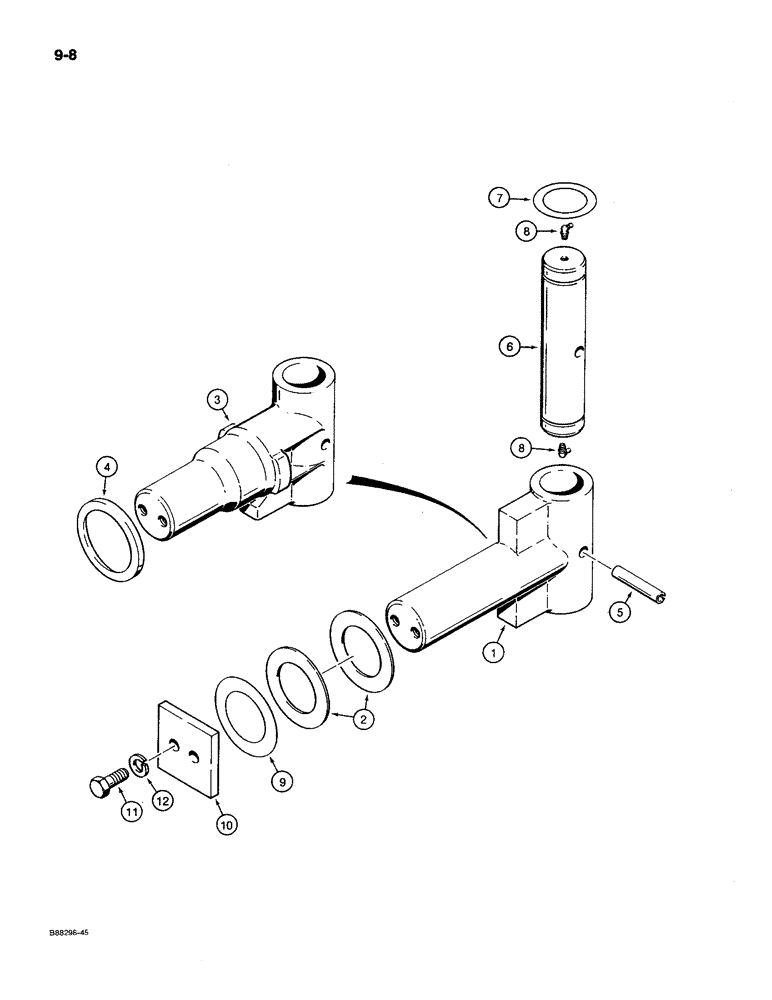

Запчасти Case MAXI-SNEAKER C (9-08) - ARTICULATION JOINT (09) - CHASSIS/ATTACHMENTS

1

H623603

SHAFT

- pivot, no longer available, order Ref. 3 shaft and Ref. 4 thrust washer

1шт.

2

H334508

WASHER

- thrust, used with Ref. 1 shaft

2шт.

3

H408708

AXLE PIN

SHAFT - pivot

1шт.

4

H433764

WASHER

- thrust, used with Ref. 3 shaft

1шт.

5

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2-1/2", Slotted

1шт.

6

H330993

AXLE PIN

PIN - pivot

1шт.

7

H334524

SHIM,.031" Thk

Pivot pin .031" Thk

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

9

H334516

SHIM,.031" Thk

Pivot shaft .031" Thk

1шт.

10

H334128

PLATE ASSY.

PLATE - cover, pivot shaft

1шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
