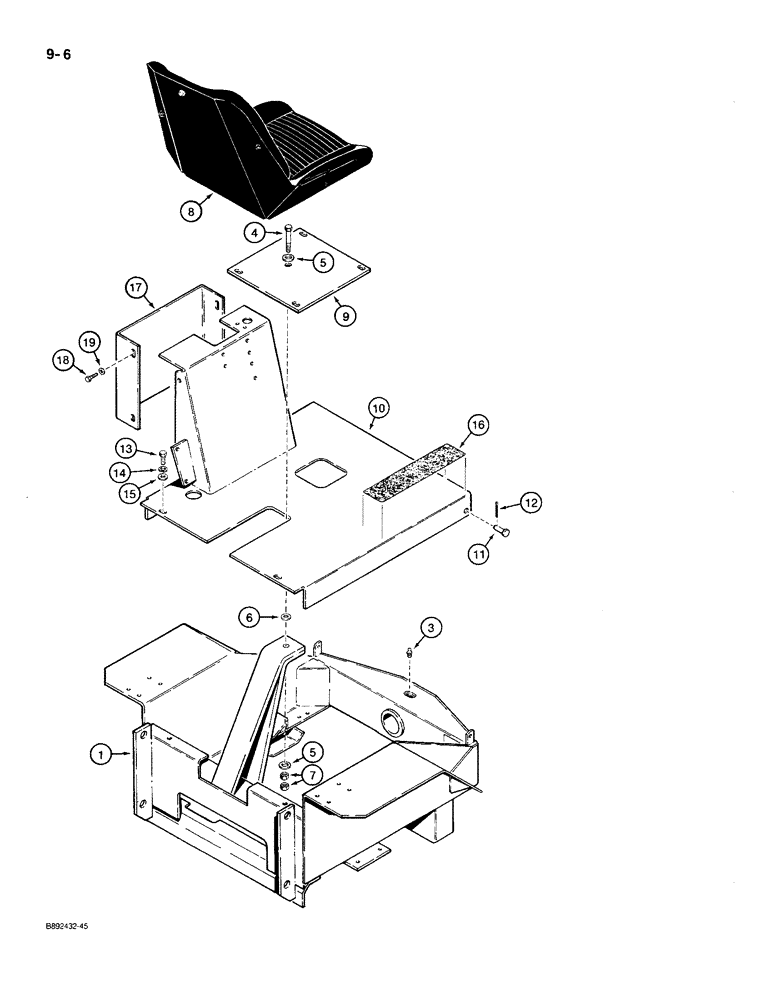

Запчасти Case MAXI-SNEAKER C (9-06) - REAR FRAME AND FLOOR PLATES, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

H673533

FRAME ASSY

FRAME ASSEMBLY - rear

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex head, 3/4" - 10 NCx 2-3/4", plated

1шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4", special

2шт.

6

195-548

WASHER - flat, 3/4"

1шт.

7

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

8

H669457

SEAT

ASSEMBLY - operators, parts list Figure 9-12

1шт.

9

H426353

PLATE

- seat mounting

1шт.

10

H672528

PLATE ASSY.

PLATE - floor

1шт.

11

H44586

AXLE PIN

PIN - clevis, special

2шт.

12

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

2шт.

16

H349407

BAND

STRIP - anti-skid

3шт.

17

H334318

PANEL

COVER - rear console

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.
