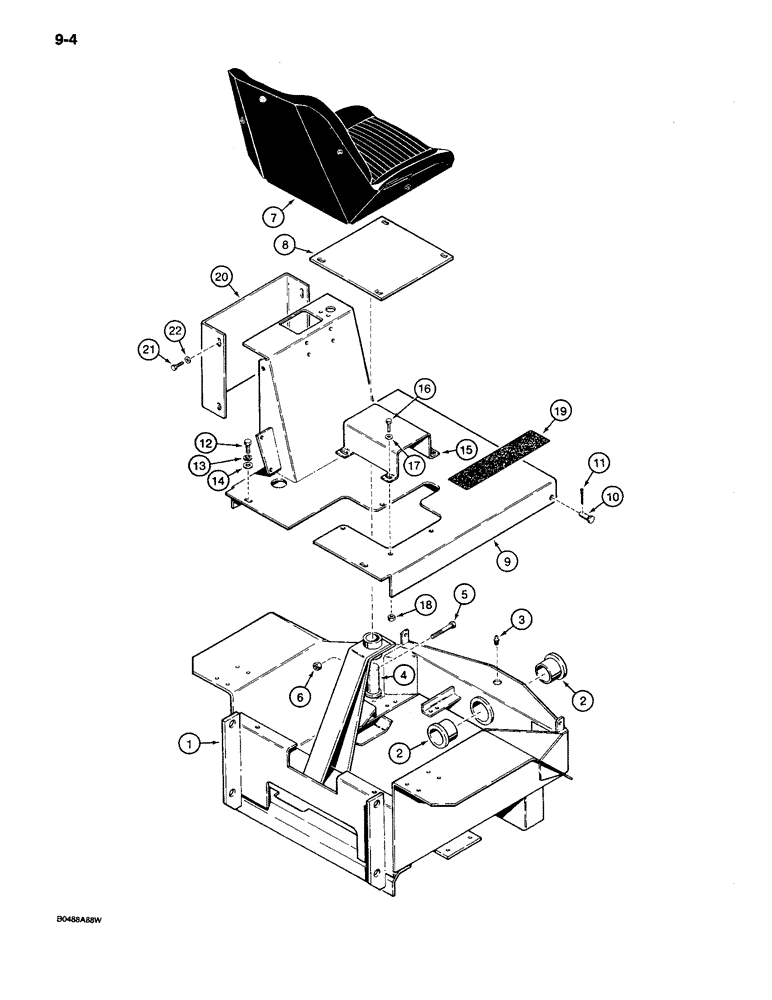

Запчасти Case MAXI-SNEAKER C (9-04) - REAR FRAME AND FLOOR PLATES, USED ON MODELS PRIOR TO P.I.N. JAF0021856 (09) - CHASSIS/ATTACHMENTS

1

H654566

FRAME

ASSEMBLY - rear, used on models prior to P.I.N., Serial Range: -1214519

1шт.

1

H661439

FRAME ASSY

FRAME ASSEMBLY - rear, used on models with P.I.N. 1214519 - P.I.N. 1214572, not shown

1шт.

1

H669408

FRAME

ASSEMBLY - rear, used on models with P.I.N. 1214573 - P.I.N. JAF0021855, not shown, Includes: Ref. 2

1шт.

2

H331009

BUSHING

- frame

1-2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

H315531

AXLE PIN

PIN - seat mounting

1шт.

5

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

7

H669457

SEAT

ASSEMBLY - operators, parts list Figure 9-12

1шт.

8

H623496

SEAT

PLATE - seat mounting

1шт.

9

H654574

PLATE

- floor, used on models prior to P.I.N., Serial Range: -1214519

1шт.

9

H663633

PLATE ASSY.

PLATE - floor, used on models with P.I.N. 1214519 - P.I.N. 1242166, not shown

1шт.

9

H672528

PLATE ASSY.

PLATE - floor, used on models with P.I.N. 1242166 - P.I.N. JAF0021855, not shown

1шт.

10

H44586

AXLE PIN

PIN - clevis, special

2шт.

11

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

2шт.

15

H407064

COVER

- ground drive motor, used on models prior to P.I.N., Serial Range: -1214519

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

19

H349407

BAND

STRIP - anti-skid

3шт.

20

H334318

PANEL

COVER - rear console

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.
