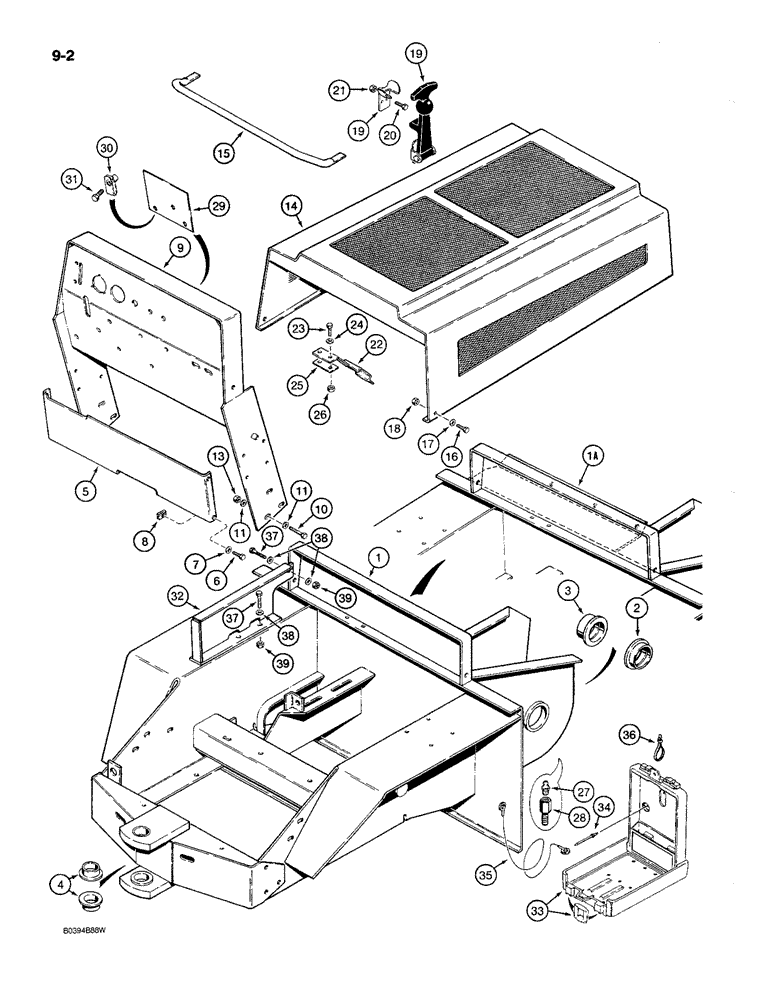

Запчасти Case MAXI-SNEAKER C (9-02) - FRONT FRAME, HOOD, AND CONSOLE (09) - CHASSIS/ATTACHMENTS

1

H651604

FRAME

ASSEMBLY - front, used on models prior to P.I.N., Serial Range: -JAF0021856

1шт.

1a

H673665

FRAME ASSY

FRAME ASSEMBLY - front, used on models with P.I.N. and after, Includes: Ref. 2-4, Start Serial: JAF0021856

1шт.

2

H28969

BUSHING

- right-hand

1шт.

3

H548453

CASTING

BUSHING - left-hand (replaces H158576)

1шт.

4

H330985

BUSHING

- pivot point

2шт.

5

H407056

COVER

- lower console, no longer required

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with Ref. 5 cover

6шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, used with Ref. 5 cover

6шт.

8

H346650

NUT

- U-type, 5/16" - 18 NC, special, used with Ref. 5 cover

6шт.

9

H652131

CONSOLE

- front

1шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

11

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

12шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

14

H661009

HOOD

ASSEMBLY - engine access, Includes: Ref. 15

1шт.

15

H337303

BAR - hand, no longer required or serviced

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

18

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

19

H628263

LATCH ASSY.

LATCH - hood

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

22

H396168

SUPPORT

- hood

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

24

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

25

H396176

LARGE PLATE

PLATE - support

1шт.

26

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

28

H35121

FITTING

EXTENSION - grease fitting

2шт.

29

H413740

SHIELD

- heat, front console

1шт.

30

H346650

NUT

- U-type, 5/16" - 18 NC, special

2шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

32

H652503

GUARD

- hydraulic tubes

1шт.

33

R46464

CASE

BOX - operators manual

1шт.

34

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16", manual box retaining

3шт.

35

D126821

CABLE

CORD - manual retaining

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

37

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex head, 5/16" - 18 NC x 2"

3шт.

38

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

39

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 - 18 NC

3шт.

FOR WELDMENT PIECES ON FRAME ASSY-REFERENCE REF. 3, TO THE RIGHT OF THAT REF IS PART H183582 & TO THE LEFT IS H183590.

1шт.
