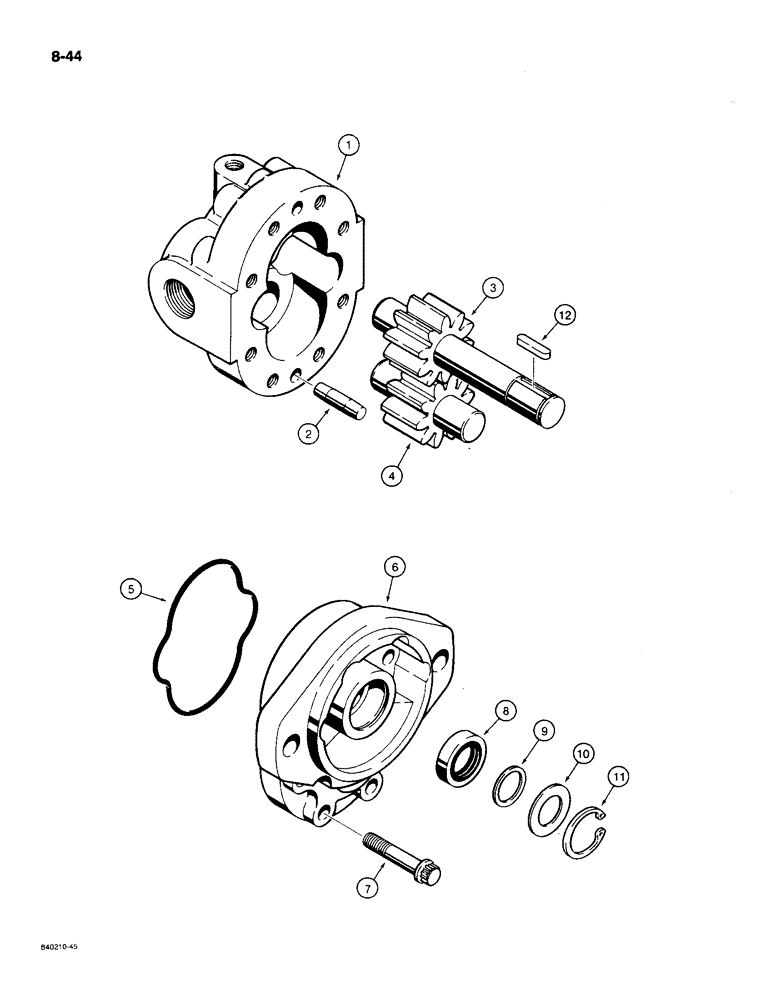

Запчасти Case MAXI-SNEAKER C (8-44) - HYDRA-BORER DRIVE MOTOR (08) - HYDRAULICS

H654814

MOTOR

ASSEMBLY - Hydra-Borer drive, see Figure 9-62 for mounting hardware, Includes: Ref. 1-12

1шт.

1

H660316

HOUSING

- port end

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, housing

2шт.

3

H660332

GEAR

- drive, motor

1шт.

4

H660324

GEAR

- driven, motor

1шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

- housing seal

1шт.

6

N13533

PLATE

HOUSING - output shaft end

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 1-1/2", grade 8

8шт.

8

H263608

SEAL

- shaft, output

1шт.

9

H418004

WASHER

- backup

1шт.

10

H94490

WASHER

- special

1шт.

11

A36277

SNAP RING,1.125", Int, #112

seal 1.125", Int, #112

1шт.

12

H413575

KEY

- drive shaft

1шт.
