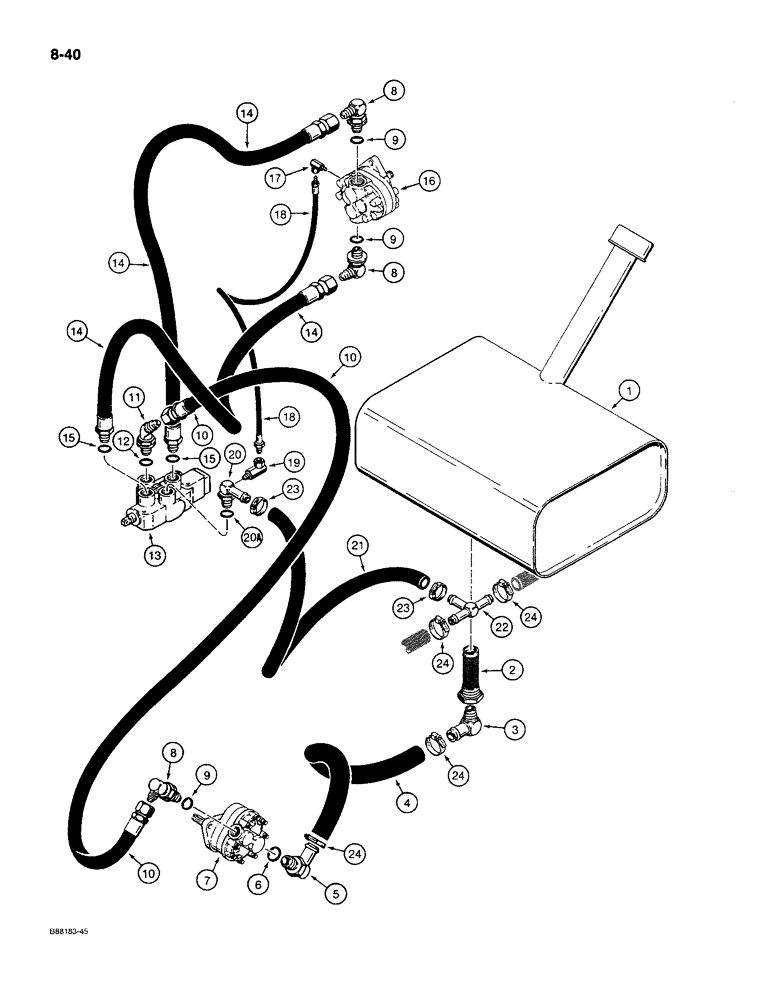

Запчасти Case MAXI-SNEAKER C (8-40) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H651612

OIL RESERVOIR

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

H641415

SCREEN

- suction

1шт.

3

H377390

FITTING

ELBOW - special, at hydraulic reservoir

1шт.

4

H66779

LARGE HOSE

HOSE - 1" (25 mm) x 54" (1372 mm) long, hydraulic reservoir to water pump, cut from S118383 bulk hose, see below

1шт.

S118383 HOSE-bulk, 1" (25 mm ) ID x 192" (4877 mm) long

1шт.

5

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Includes Ref. 6

1шт.

7

H601617

PUMP

ASSEMBLY - gear, parts list Figure 9-68

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 9

3шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

H276105

HYDRAULIC HOSE,12.70 mm ID x 1473.20 mm, SAE 100R1

- Water pump to control valve 12.70 mm ID x 1473.20 mm, SAE 100R1

1шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

H544718

LOCK VALVE

VALVE ASSEMBLY - control, Hydra-Borer, parts list Figure 8-42

1шт.

14

H211821

HYDRAULIC HOSE,12.70 mm ID x 1041.40 mm, SAE 100R1

Control Valve to Drive Motor, Includes Ref. 15 12.70 mm ID x 1041.40 mm, SAE 100R1

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

16

H654814

MOTOR

ASSEMBLY - Hydra-Borer drive, parts list Figure 8-44

1шт.

17

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, swivel

1шт.

18

H71407

HOSE,0.25" ID x 39.00"

. , Drive Motor to Control Valve 0.25" ID x 39.00"

1шт.

19

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

- 90 degree, swivel

1шт.

20

H386417

FITTING

TEE - special, at control valve, Includes: Ref. 20A

1шт.

20a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

21

H317313

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 28" (711 mm) long, control valve to tee, cut from 180720C2 bulk hose, see below

1шт.

180720C2 HOSE-bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.

22

H377408

TEE

- special

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, control valve to tee

2шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, water pump to hydraulic reservoir and steering control valve hose to tee

4шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
