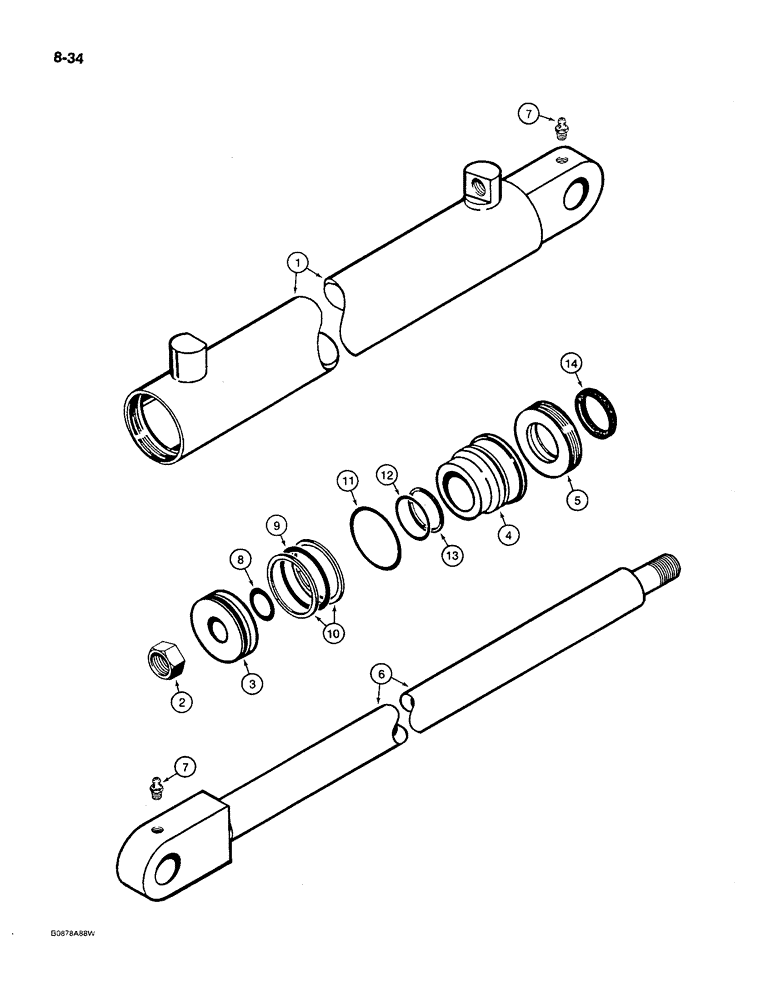

Запчасти Case MAXI-SNEAKER C (8-34) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

H622019

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2" (51 mm) ID x 22-1/2" (572 mm) stroke, backhoe boom, for mounting hardware see Figure 9-56, Includes: Ref. 1-14

1шт.

1

H628958

CYLINDER

TUBE - cylinder

1шт.

2

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC, plated

1шт.

3

H343129

PISTON ASSY.

PISTON - cylinder

1шт.

4

H343145

BEARING

GLAND - cylinder

1шт.

5

H343137

RETAINER

- gland

1шт.

6

H628941

ROD

- piston

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

H628933

SEAL ASSY.

KIT - seal repair, Includes: Ref. 8-14

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod, small

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - gland, inner

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, inner O-ring, gland

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.
