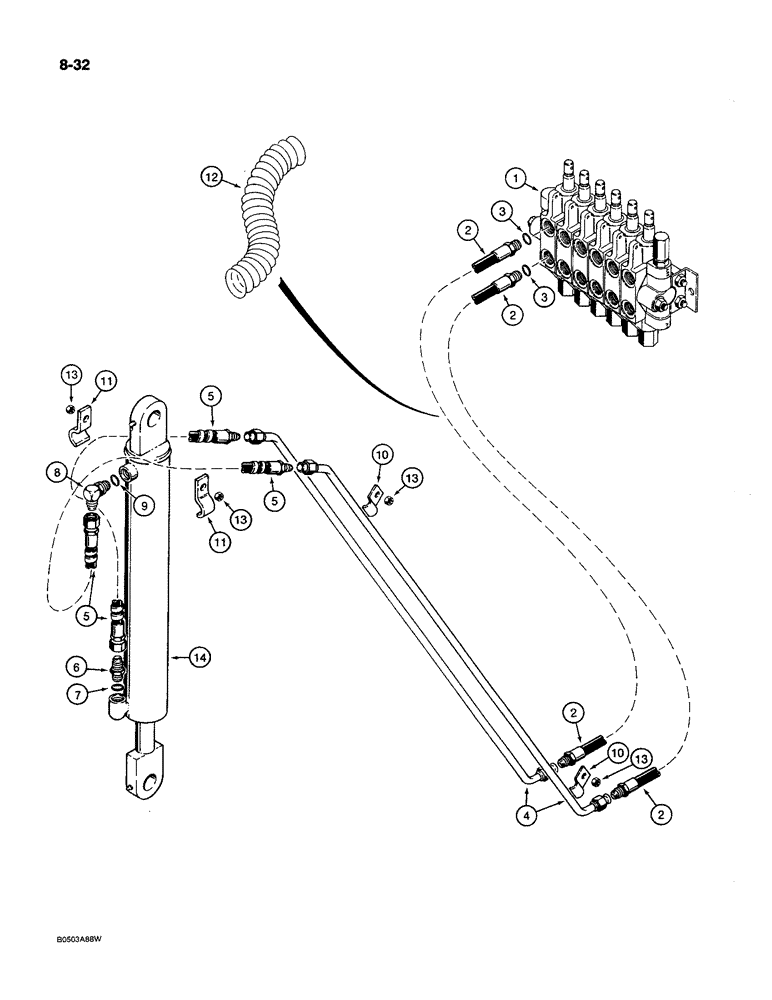

Запчасти Case MAXI-SNEAKER C (8-32) - BUCKET CYLINDER HYDRAULIC CIRCUIT, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

2

H384354

HOSE ASSY.

HOSE - 1150 mm long, at backhoe control valve, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

4

H635474

TUBE,0.375" OD

- intermediate, backhoe control valve hose to bucket cylinder hose

2шт.

5

H384388

HOSE ASSY.

HOSE - 1200 mm long, at bucket cylinder

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

10

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

4шт.

11

H349720

CLAMP

- hose

2шт.

12

H362434

HOSE,90.00"

Guard 90.00"

2шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

14

H622027

CYLINDER

ASSEMBLY - bucket, parts list Figure 8-36

1шт.
