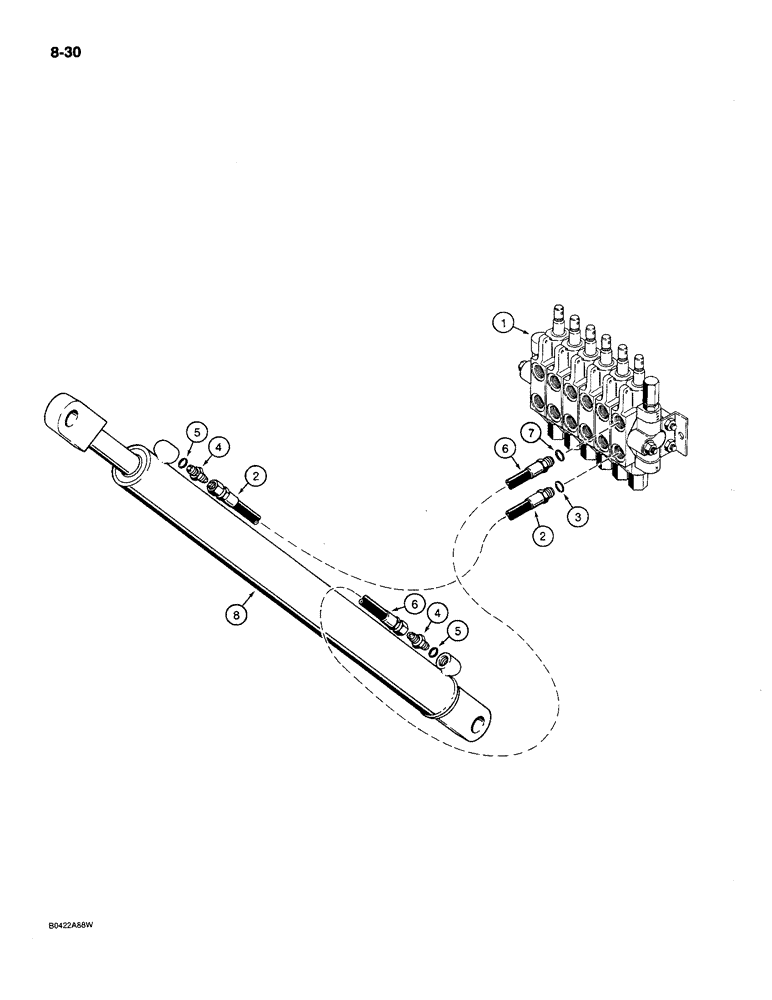

Запчасти Case MAXI-SNEAKER C (8-30) - BOOM CYLINDER HYDRAULIC CIRCUIT, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

2

H384420

HOSE ASSY.

HOSE - 1200 mm long, backhoe control valve to rod end of boom cylinder, Includes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 5

2шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

6

H384438

HOSE ASSY.

HOSE - 914 mm long, backhoe control valve to closed end of boom cylinder, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

8

H622019

CYLINDER BLOCK

CYLINDER ASSEMBLY - boom, parts list Figure 8-34

1шт.
