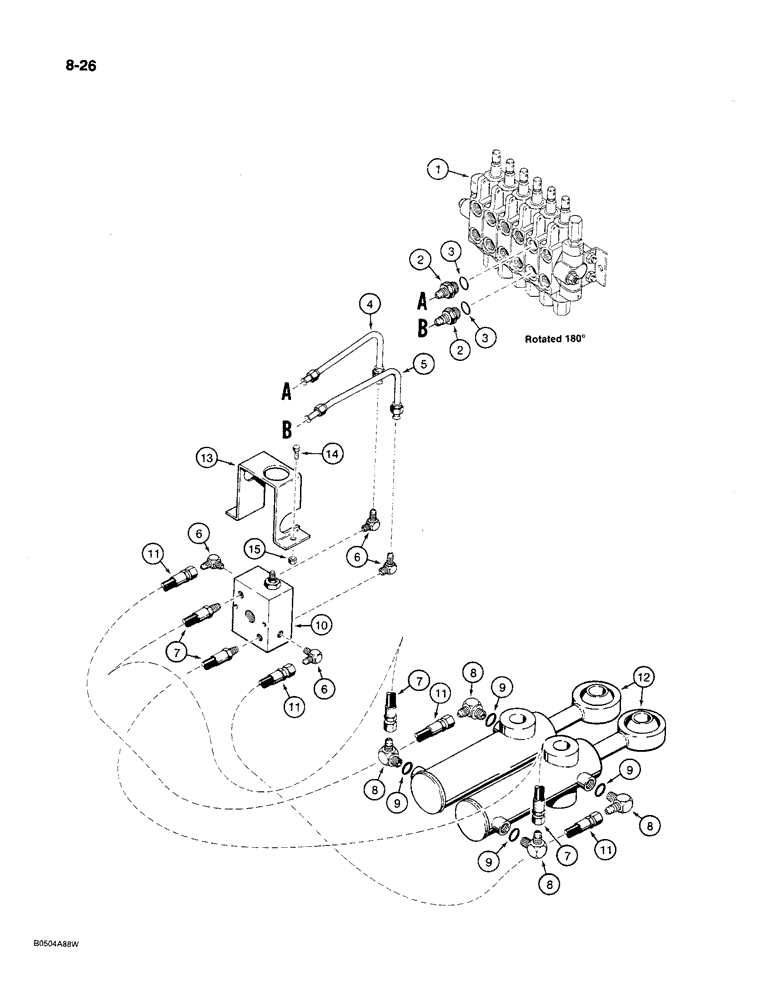

Запчасти Case MAXI-SNEAKER C (8-26) - SWING CYLINDER HYDRAULIC CIRCUIT, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

H635441

TUBE ASSY.,0.375" OD x 2.75, 5.41" L

TUBE - backhoe control valve A port to relief and anticavitation valve

1шт.

5

H635458

TUBE ASSY.,0.375" OD x 3.06, 4.44" L

TUBE - backhoe control valve B port to relief and anticavitation valve

1шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

4шт.

7

H169599

HOSE ASSY.

HOSE - 406 mm long, relief and anti-cavitation valve to closed end of swing cylinders

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

4шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

10

H625251

LOCK VALVE

VALVE ASSEMBLY - relief and anticavitation, parts list Figure 8-22

1шт.

11

H168658

HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1

6.35 mm ID x 508.00 mm, Relief and Anticavitation Valve to Rod End of Swing Cylinders

2шт.

12

H622001

CYLINDER BLOCK

CYLINDER ASSEMBLY - backhoe swing, parts list Figure 8-38

2шт.

13

H335117

BRACKET

- relief and anti-cavitation valve

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
