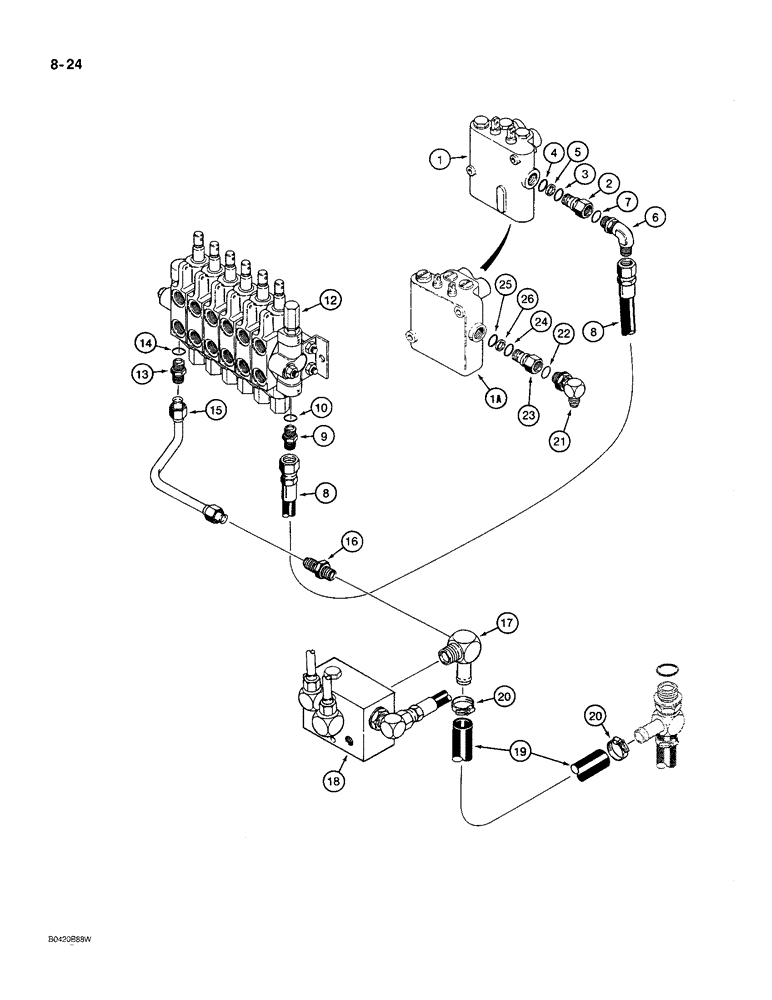

Запчасти Case MAXI-SNEAKER C (8-24) - BACKHOE HYDRAULIC SUPPLY AND RETURN LINES, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, used on models prior to P.I.N., parts list Figure 5-4, Serial Range: -JAF0021856

1шт.

1a

H656454

VALVE

ASSEMBLY - control, steering and attachment lit, used on models with P.I.N. and after, parts list Figure 5-6, Start Serial: JAF0021856

1шт.

D61608

SLEEVE

ASSEMBLY - power beyond, used on models prior to P.I.N., Includes: Ref. 2-5, Serial Range: -JAF0021856

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

5

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, sleeve

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used on models prior to P.I.N., Includes: Ref. 7, Serial Range: -JAF0021856

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering and attachment lift control valve to backhoe control valve

1шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

12

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

15

H635466

TUBE ASSY.,0.375" OD

TUBE - backhoe control valve to relief and anticavitation valve

1шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

17

H339507

ELBOW UNION

TEE - special, at relief and anticavitation valve

1шт.

18

H625251

LOCK VALVE

VALVE ASSEMBLY - relief and anticavitation, parts list Figure 8-22

1шт.

19

H317347

HOSE

- 3/4" (19 mm) ID x 46" (1168 mm) long, anticavitation valve to tee, cut from 180720C2 bulk hose, see below

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, used on models with P.I.N. and after, Includes: Ref. 22, Start Serial: JAF0021856

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

H347906

FITTING

SLEEVE ASSEMBLY - power beyond, used on models with P.I.N. and after, Includes: Ref. 23-26, Start Serial: JAF0021856

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

24

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

1шт.

25

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 ID x 1/16 inch

1шт.

26

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.
