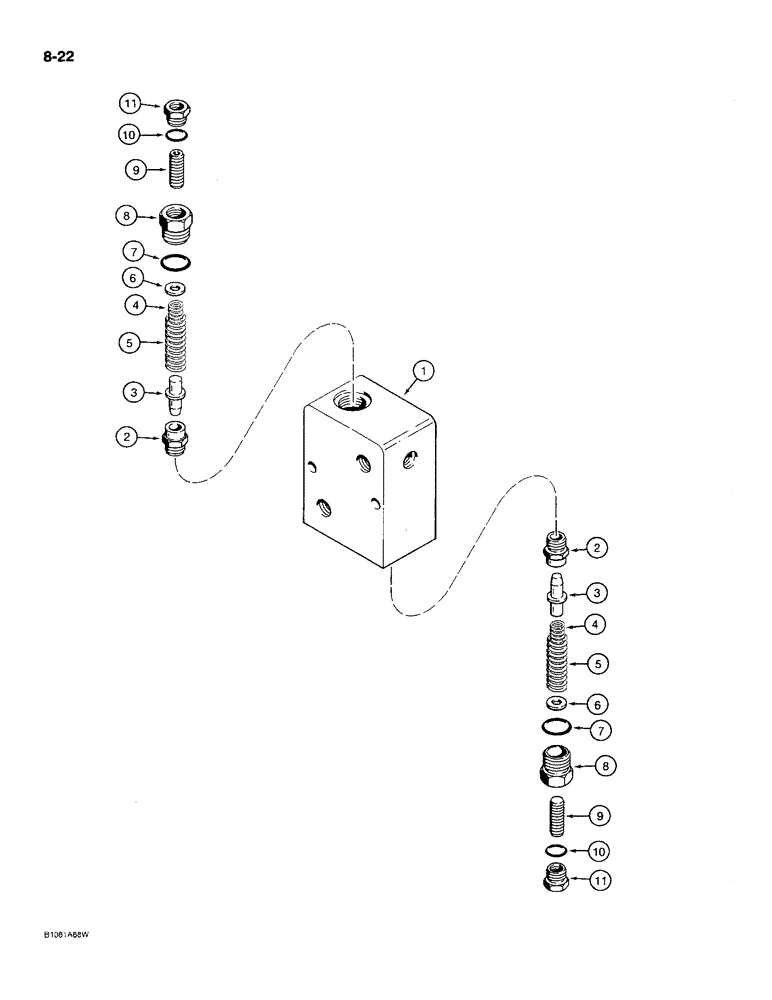

Запчасти Case MAXI-SNEAKER C (8-22) - RELIEF AND ANTICAVITATION VALVE (08) - HYDRAULICS

H625251

LOCK VALVE

VALVE ASSEMBLY - relief and anticavitation, for mounting hardware see Figure 8-24, Includes: Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief and anticavitation valve

1шт.

2

H344333

SEAT

- poppet

2шт.

3

H344325

VALVE POPPET

POPPET - valve

2шт.

4

H344317

SPRING

- inner

2шт.

5

H344309

SPRING

- outer

2шт.

6

195-509

WASHER,3/16"

- flat, , plated 3/16"

2шт.

7

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- adapter

2шт.

8

H344291

CAP

ADAPTER - adjusting bolt

2шт.

9

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

BOLT - hex socket flat, 3/8 NF x 1 inch, grade 8, adjusting

2шт.

10

H344283

SEAL

O-RING - lock nut

2шт.

11

H343970

LOCK NUT

NUT - lock, special

2шт.
