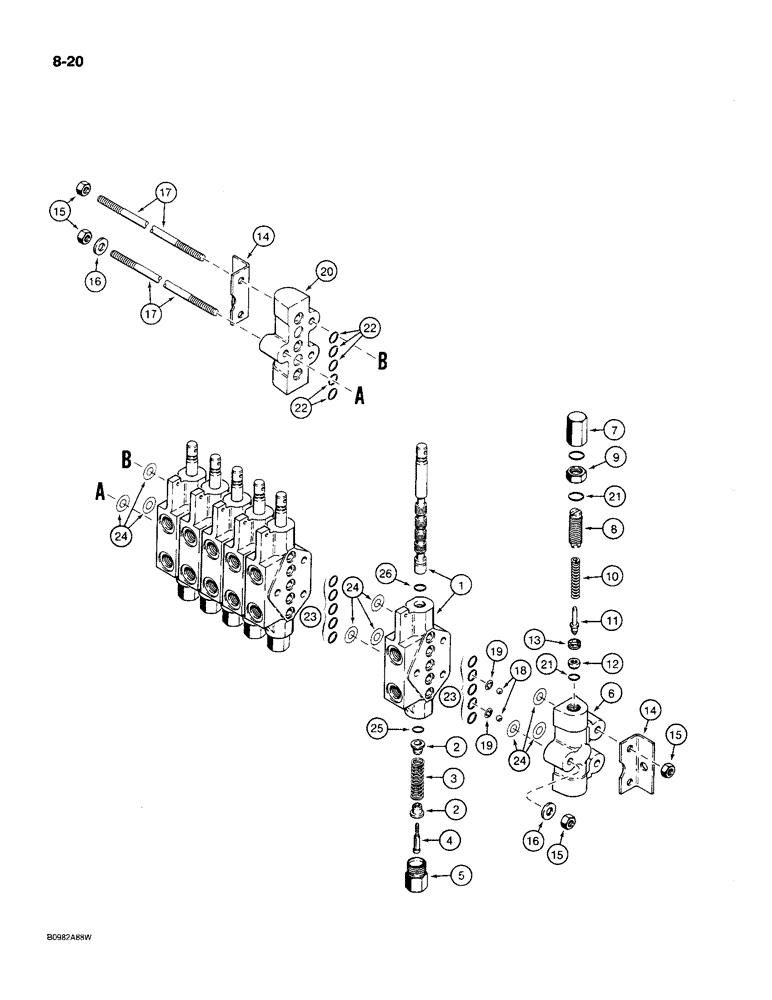

Запчасти Case MAXI-SNEAKER C (8-20) - BACKHOE CONTROL VALVE (08) - HYDRAULICS

H625244

LOCK VALVE

VALVE ASSEMBLY - backhoe control, for mounting hardware see Figure 8-18

1шт.

H629725

VALVE POPPET

SECTION ASSEMBLY - valve, Includes: Ref. 1-5

6шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve section, includes spool

1шт.

2

H344663

GUIDE - spring

2шт.

3

H344671

SPRING

- valve section

1шт.

4

H344689

SHAFT

POPPET - spring

1шт.

5

H344697

CAP

- valve section

1шт.

H629733

VALVE

SECTION ASSEMBLY - inlet, Includes: Ref. 6-13

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - inlet section

1шт.

7

H344705

CAP - inlet section

1шт.

8

H344713

SCREW - adjustment

1шт.

9

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

10

H344721

SPRING - inlet section

1шт.

11

H344739

SPOOL

POPPET - inlet section

1шт.

12

H344747

RETAINER

- seal

1шт.

13

H344754

SEAT

- spring

1шт.

14

H344762

BRACKET - valve mounting

2шт.

15

129-578

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC

6шт.

16

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

17

H344770

TIE-ROD

ROD - tie

3шт.

18

H384735

BALL

- check

2шт.

19

H384743

RETAINER

- ball

2шт.

20

H344788

TANK

SECTION - outlet

1шт.

21

H629741

SEAL ASSY.

KIT - seal, inlet section

1шт.

22

H629758

SEAL ASSY.

KIT - seal, outlet section

1шт.

H629766

SEAL ASSY.

KIT - seal, valve section, Includes: Ref. 23-26

1шт.

23

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- valve section

5шт.

24

H344846

SHIM

- mylar, valve section

3шт.

25

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- small, spool

1шт.

26

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- large, spool

1шт.
