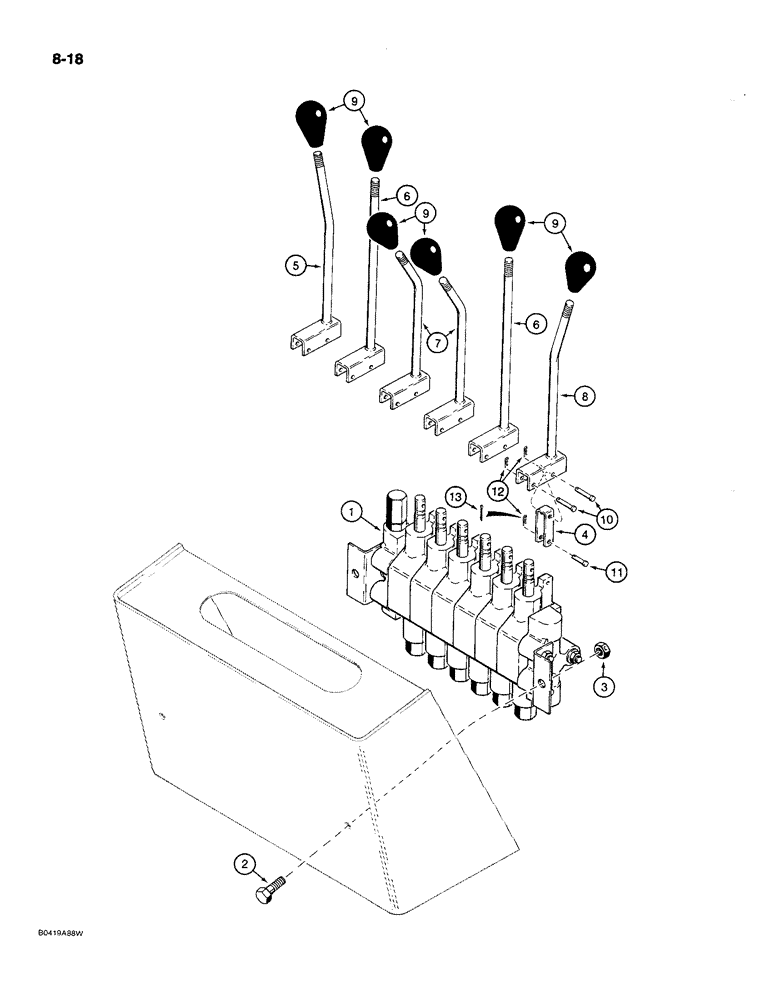

Запчасти Case MAXI-SNEAKER C (8-18) - BACKHOE CONTROLS, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

4

H339176

DRAG LINK

LINK - control, Serial Range: valve-levers

6шт.

5

H629717

LEVER

- control, boom

1шт.

6

H629709

LEVER

- control, swing, dipper (crowd)

2шт.

7

H629782

LEVER

- control, backfill blade

2шт.

8

H629691

LEVER

- control, bucket

1шт.

9

A14051

GRIP

KNOB - lever

6шт.

10

H343822

AXLE PIN

PIN - clevis, 5/32" x 7/8" long, special, lever

12шт.

11

H344648

AXLE PIN

PIN - clevis, 5/32" x 5/8" long, control, Serial Range: valve-link

6шт.

12

136-151

COTTER PIN,Int, 1/16" x .036"

PIN - hair, internal type, 1/16" x 7/16", if used

18шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , If used 1/16" x 1/2"

18шт.
