(8-16) - BACKFILL BLADE CONTROL VALVE, USED ON MODELS WITHOUT BACKHOE

Запчасти Case MAXI-SNEAKER C (8-16) - BACKFILL BLADE CONTROL VALVE, USED ON MODELS WITHOUT BACKHOE (08) - HYDRAULICS

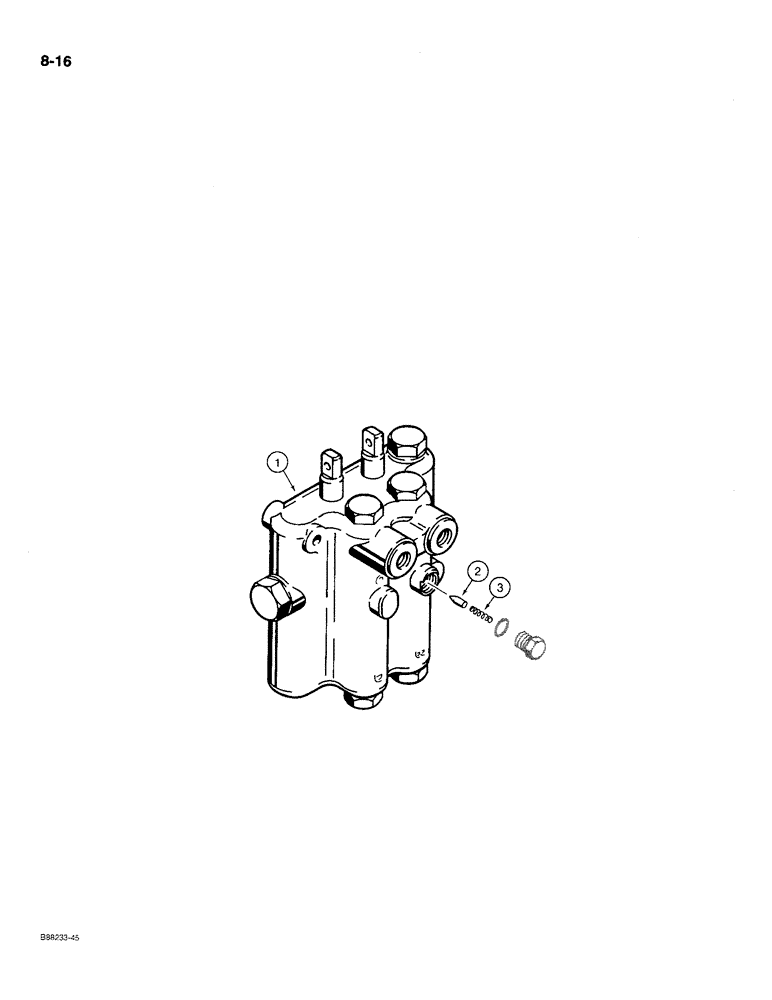

Схема запчастей Case MAXI-SNEAKER C - (8-16) - BACKFILL BLADE CONTROL VALVE, USED ON MODELS WITHOUT BACKHOE (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H553818

VALVE

ASSEMBLY - control, backfill blade, for mounting hardware see Figure 8-10, Includes: Ref. 1-3

1шт.

1

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, parts list Figure 5-4

1шт.

2

H104992

PAWL

PLUNGER - detent

1шт.

3

H142166

VALVE SPRING

SPRING - detent plunger

1шт.

Выбрано товаров: 4
