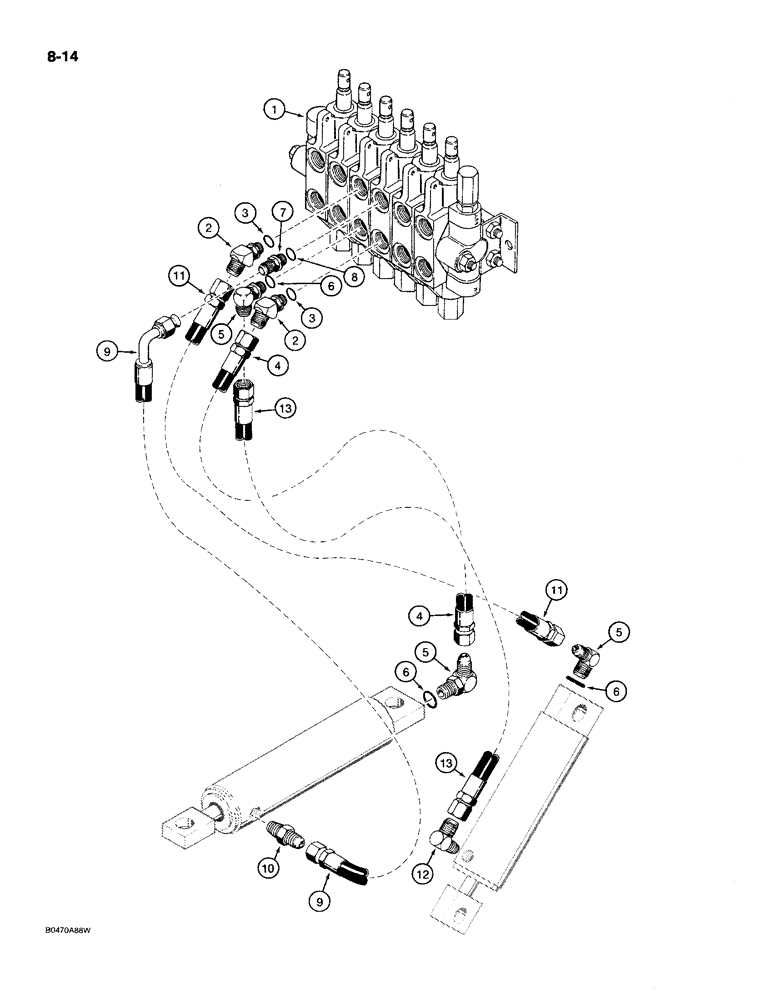

Запчасти Case MAXI-SNEAKER C (8-14) - BACKFILL BLADE HYDRAULIC CIRCUIT, USED ON MODELS WITH SD-70 BACKHOE (08) - HYDRAULICS

1

H625244

LOCK VALVE

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-20

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

Backhoe Control Valve to Closed End of Backfill Blad Angle Cylinder 6.35 mm ID x 1473.20 mm, SAE 100R1

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 6

3шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 8

1шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

9

H231639

HOSE ASSY.

HOSE - 47" (1194 mm) long, backhoe control valve to rod end of backfill blade cylinder

1шт.

10

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

11

H362418

HOSE

- 48" (1219 mm) long, backhoe control valve to closed end of backfill blade lift cylinder, left-hand side of machine

1шт.

12

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

13

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Backhoe Control Valve to Rod End of Backfill Blade Lift Cylinder 6.35 mm ID x 939.60 mm, SAE 100R1

1шт.
