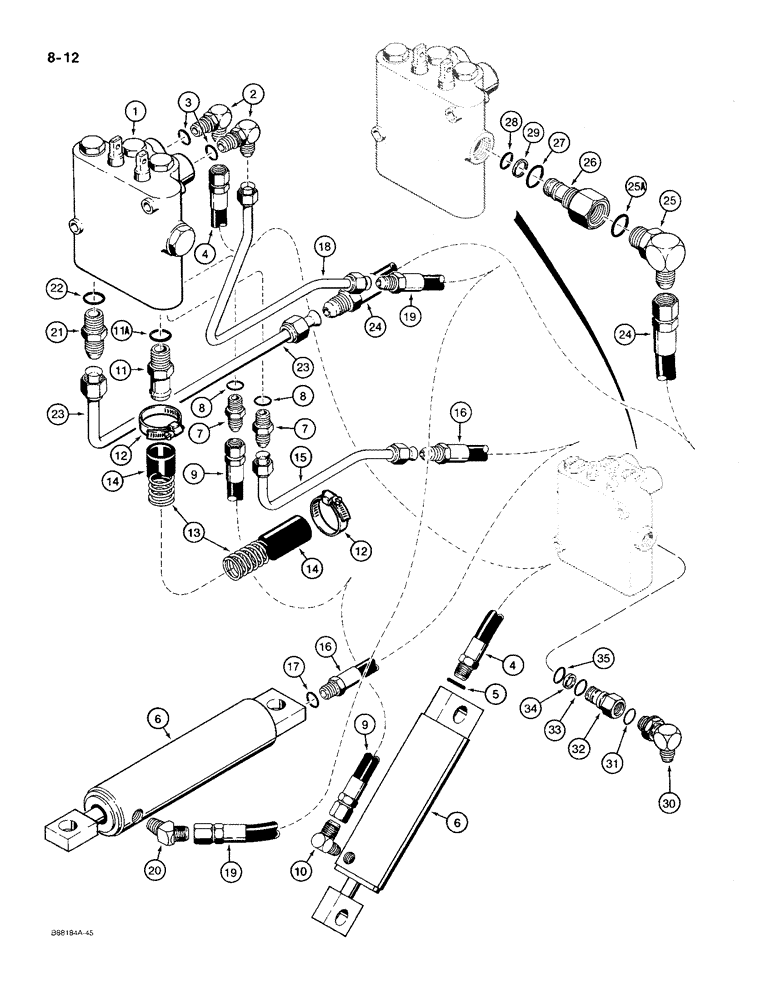

Запчасти Case MAXI-SNEAKER C (8-12) - BACKFILL BLADE HYDRAULIC CIRCUIT, USED ON MODELS WITHOUT BACKHOE (08) - HYDRAULICS

1

H553818

VALVE

ASSEMBLY - control, backfill blade, parts list Figure 8-16

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H433976

HOSE ASSY.

HOSE - 15" (380 mm) long, backfill blade control valve to closed end of backfill blade lift cylinder, Includes: Ref. 5

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

6

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade angle or lift cylinder, parts list Figure 8-8

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

9

H168658

HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1

6.35 mm ID x 508.00 mm, Backfill Blad Control Valve to Rod End of Backfill Blade Lift Cylinder

1шт.

10

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

11

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

- stem, straight, Includes: Ref. 11A

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

13

H309906

SPRING

- hose

2шт.

14

H431007

HOSE - 3/4" (19 mm) x 26" (660 mm) long, backfill blade control valve to ground drive motor, cut from 180720C2 bulk hose, see below

1шт.

15

H560136

TUBE,0.375" OD

- backfill blade control valve to closed end of backfill blade angle cylinder

1шт.

16

H190033

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

Backfill Blade Control Valve to Closed End of Backfill Blade Angle Cylinder, Includes: Ref. 17 6.35 mm ID x 685.80 mm, SAE 100R1

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

18

H560144

TUBE,0.375" OD

- backfill blade control valve to rod end of backfill blade angle cylinder

1шт.

19

H168625

HYDRAULIC HOSE,6.35 mm ID x 381.00 mm, SAE 100R1

6.35 mm ID x 381.00 mm, Backfill Blade Control Valve to Rod End of Backfill Blade Angle Cylinder

1шт.

20

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

- 45 degree

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 22 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

23

H626739

TUBE,0.5" OD x 12.35, 2.65" L

- backfill blade control valve to steering and trencher boom lift control valve

1шт.

24

H200378

HOSE,0.38" ID x 45.00", SAE 100R1

Backfill Blade control Valve to Steering and trencher Boom Lift Control Valve 0.38" ID x 45.00", SAE 100R1

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90°, adjustable, Serial Range: -JAF0021856

1шт.

25a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

D61608

SLEEVE

ASSEMBLY - power beyond, Serial Range: -JAF0021856

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

27

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large

1шт.

28

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

29

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, sleeve

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90°, adj., 3/4-16 inch flare x O-ring boss, Start Serial: JAF0021856

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

H347906

FITTING

SLEEVE ASSEMBLY - power beyond, Start Serial: JAF0021856

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

33

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 ID x 13/16 inch

1шт.

34

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 ID x 1/16 inch

1шт.

35

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup

1шт.

11a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
