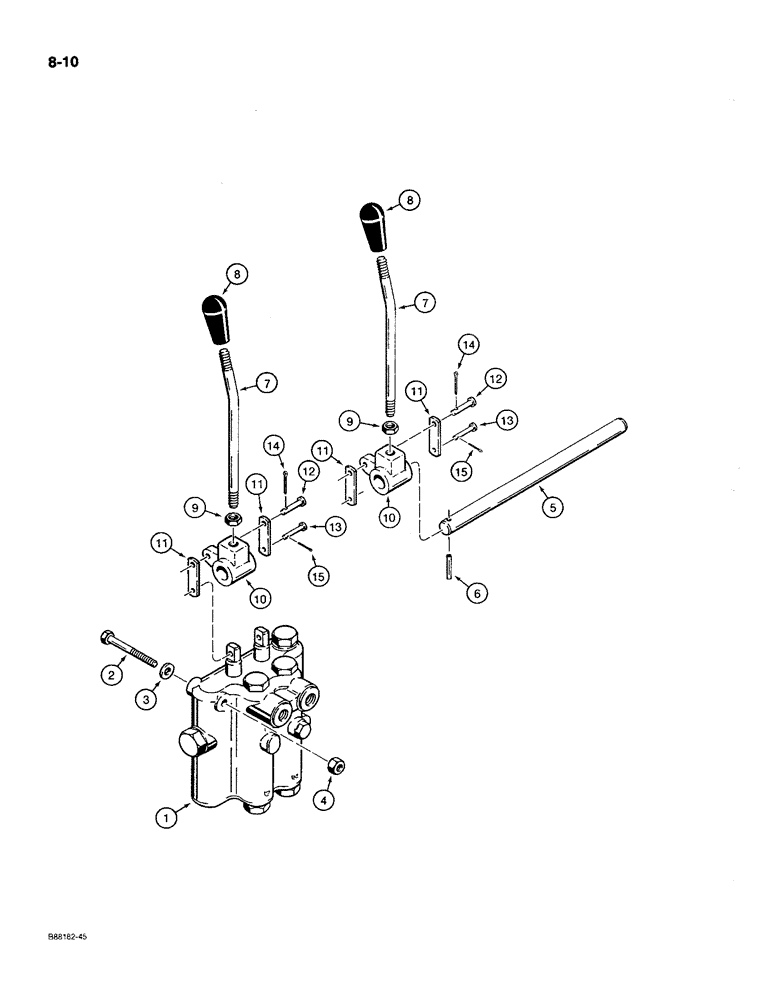

Запчасти Case MAXI-SNEAKER C (8-10) - BACKFILL BLADE CONTROLS AND LINKAGE, USED ON MODELS WITHOUT BACKHOE (08) - HYDRAULICS

1

H553818

VALVE

ASSEMBLY - control, backfill blade, parts list Figure 8-16

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

5

H185116

SHAFT

- control levers

1шт.

6

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

7

H182063

HANDLE

LEVER - backfill blade control

2шт.

8

H182121

KNOB

- lever

2шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

10

H275255

CRANK LEVER

BELLCRANK - lever to control valve

2шт.

11

H185066

DRAG LINK

LINK - bellcranks to control valve

4шт.

12

D23693

AXLE PIN

PIN - clevis, 1/4" x 1" long, special

2шт.

13

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64" long, special

2шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

15

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
