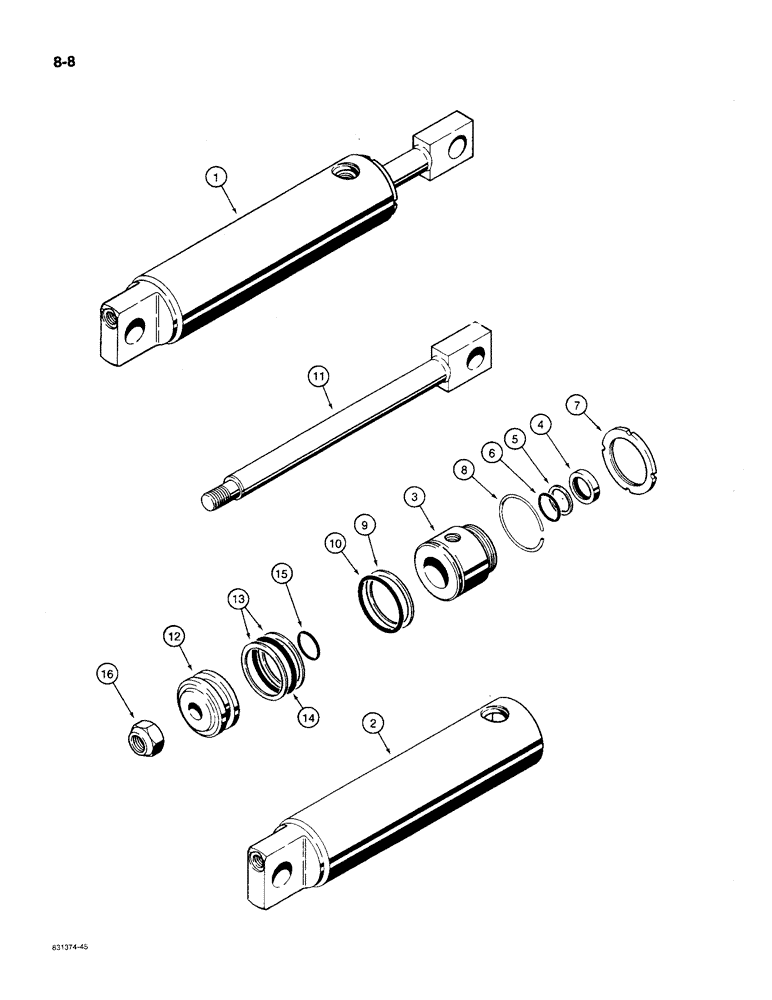

Запчасти Case MAXI-SNEAKER C (8-08) - BACKFILL BLADE ANGLE AND LIFT, AND TRENCHER BOOM LIFT CYLINDER (08) - HYDRAULICS

1

H504076

CYLINDER BLOCK

cylinder, Includes: Ref. 2-16

2-3шт.

CYLINDER ASSEMBLY - 2-1/2" (64 mm) ID x 8" (203 mm) stroke, backfill blade angle and lift and trencher boom lift, for models with backfill blade use two cylinders and for models with trencher use one cylinder, for mounting hardware see Figure 9-28 for trencher boom lift cylinder or 9-44 for backfill blade angle and lift

1шт.

2

H72215

SLEEVE CYLINDER

TUBE - cylinder

1шт.

3

H70078

BEARING

GLAND - cylinder

1шт.

4

H220475

WIPER SEAL

WIPER - rod

1шт.

Part of Seal Kit, P/N H507350

1шт.

5

A35899

RING

- backup, inner O-ring, gland

1шт.

Part of Seal Kit, P/N H507350

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- gland, inner

1шт.

Part of Seal Kit, P/N H507350

1шт.

7

H745786

BEARING LOCK NUT

- lock, gland

1шт.

8

A35898

RING, SNAP

RING - retaining, gland

1шт.

Part of Seal Kit, P/N H507350

1шт.

9

A35901

RING

- backup, gland O-ring, outer

1шт.

Part of Seal Kit, P/N H507350

1шт.

10

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N H507350

1шт.

11

H66571

ROD

- piston, 1" (25 mm) diameter

1шт.

12

A35897

PISTON ASSY.

PISTON - cylinder

1шт.

13

A35810

RING

- backup, piston seal, outer

2шт.

Part of Seal Kit, P/N H507350

1шт.

14

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H507350

1шт.

15

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- piston, rod

1шт.

Part of Seal Kit, P/N H507350

1шт.

16

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

H507350

GASKET KIT

KIT - seal, Includes: Ref. 4, 5, 6, 8, 9, 10, 13, 14 and 15

1шт.
