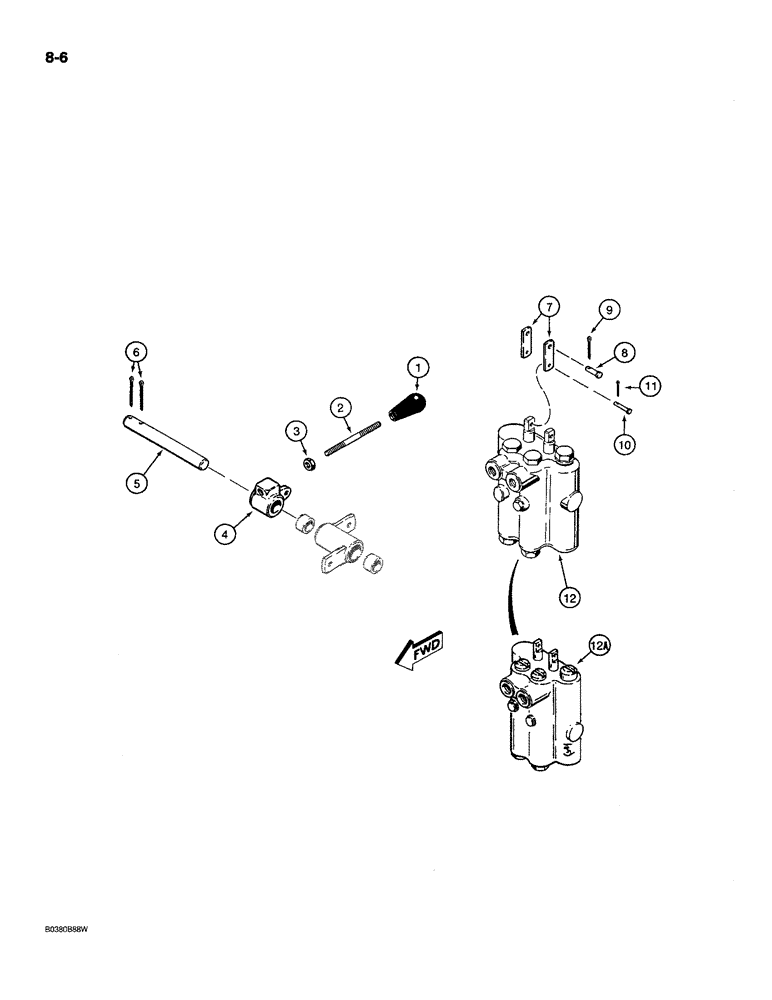

Запчасти Case MAXI-SNEAKER C (8-06) - ATTACHMENT LIFT CONTROL (08) - HYDRAULICS

1

A14051

GRIP

KNOB - control lever

1шт.

2

H242701

HANDLE

LEVER - attachment lift

1шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

4

H275263

LEVER

BELLCRANK - attachment lift

1шт.

5

H390872

PIN

SHAFT - pivot

1шт.

6

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1-2шт.

7

H185066

DRAG LINK

LINK - control valve

2шт.

8

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64" long, special

1шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

12

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, used on models prior to P.I.N., parts list Figure 5-4 to JAF0021856

1шт.

12a

H656454

VALVE

ASSEMBLY - control, steering and attachment lift, used on models with P.I.N. and after, parts list Figure 5-6, Start Serial: JAF0021856

1шт.
