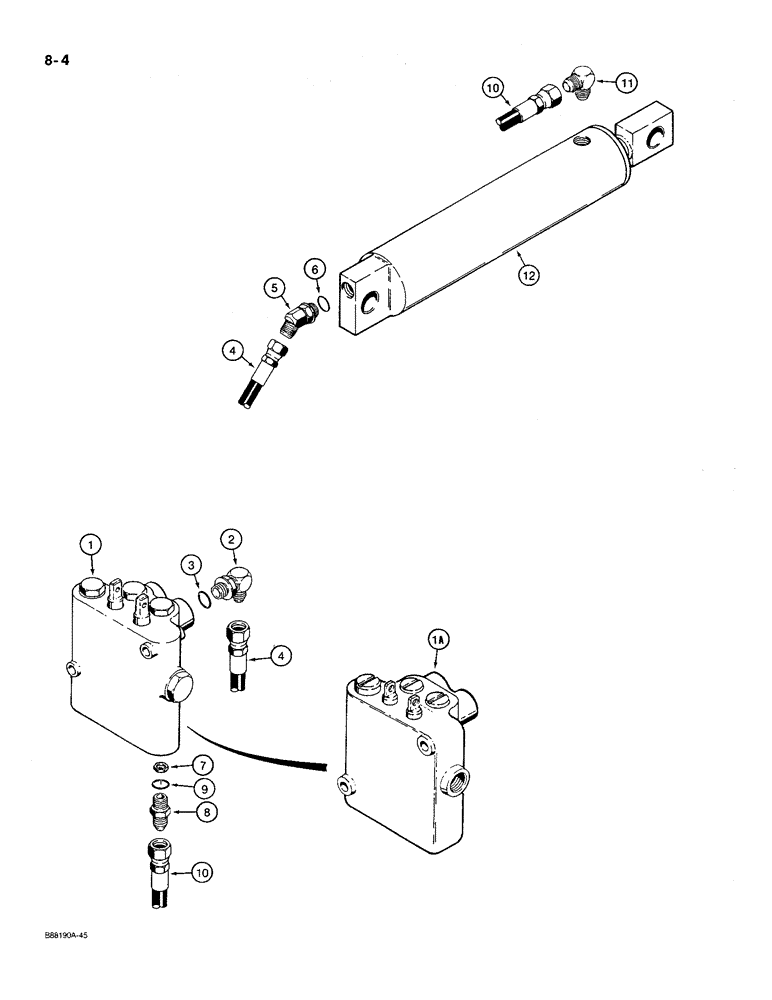

Запчасти Case MAXI-SNEAKER C (8-04) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, used on models prior to P.I.N., parts list Figure 5-4 to JAF0021856

1шт.

1a

H656454

VALVE

ASSEMBLY - control, steering and attachment lift, used on models with P.I.N. and after, parts list Figure 5-6, Start Serial: JAF0021856

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Control Valve to Closed End of Trencher Boom Lift Cylinder 6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

5

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

H746875

SCREW

ORIFICE - at steering and attachment control valve

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

H257261

HOSE,0.25" ID x 50.00", SAE 100R1

Control Valve to Rod End of Trencher Boom Lift Cylinder 0.25" ID x 50.00", SAE 100R1

1шт.

11

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

12

H504076

CYLINDER BLOCK

CYLINDER ASSEMBLY - trencher boom lift, parts list Figure 8-8

1шт.
