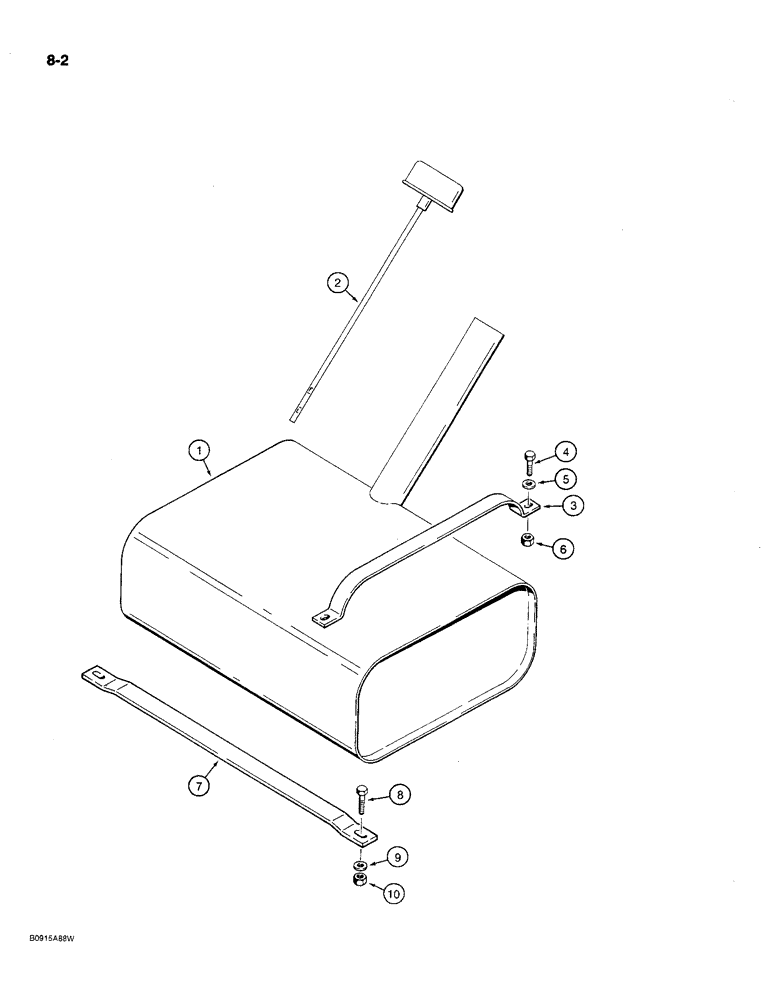

Запчасти Case MAXI-SNEAKER C (8-02) - HYDRAULIC OIL RESERVOIR AND MOUNTING (08) - HYDRAULICS

H651612

OIL RESERVOIR

RESERVOIR ASSEMBLY - hydraulic oil, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - hydraulic oil reservoir

1шт.

2

H236083

DIPSTICK

- hydraulic oil

1шт.

3

H330167

STRAP

- hydraulic reservoir mounting, upper

2шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

7

H334268

STRAP

- hydraulic reservoir mounting, lower

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.
