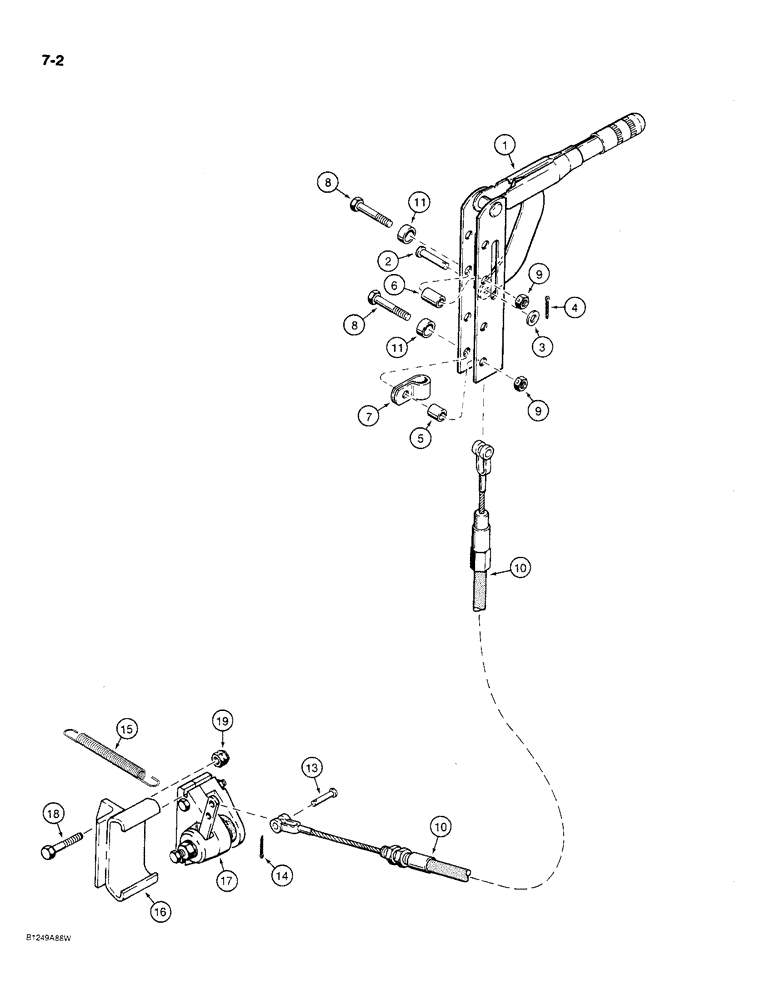

Запчасти Case MAXI-SNEAKER C (7-2) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY - parking brake, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

- clevis, special

1шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

H53959

SPACER

- 1/2" (13 mm) long, brake lever

1шт.

6

H53942

SPACER

- 3/4" (20 mm) long, brake lever

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable

1шт.

8

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

H629170

CABLE

- parking brake

1шт.

11

H270538

SPACER

- parking brake lever

2шт.

13

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64" long, special

1шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

H358069

SPRING

- brake

1шт.

16

H639864

SUPPORT

BRACKET - caliper brake mounting

1шт.

17

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, for correct assembly and components, see Figures 7-4 and 7-6

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
