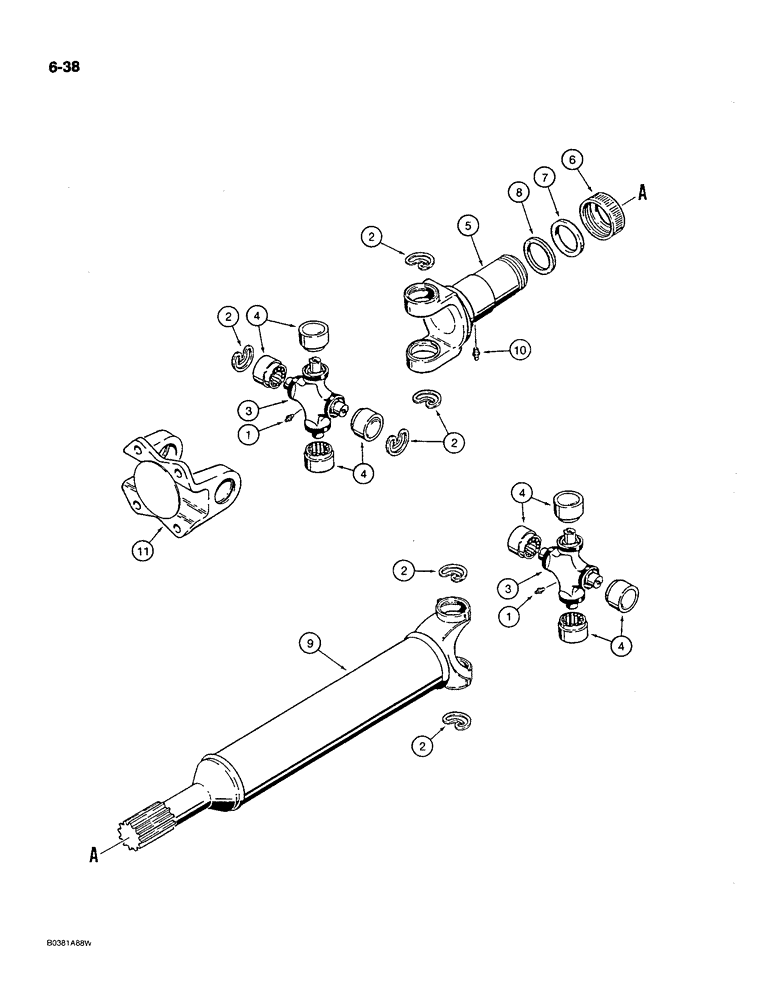

Запчасти Case MAXI-SNEAKER C (6-38) - DRIVE SHAFT, USED ON MODELS PRIOR TO P.I.N. 1214519 (06) - POWER TRAIN

H625194

DRIVE ASSY.

DRIVE SHAFT ASSEMBLY - transmission to axle, for mounting hardware see Figure 6-24

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 1-4

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper

1шт.

2

11256

SNAP RING

- snap, bearing retaining

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

102834A1

COUPLING

YOKE - slip, to axle (replaces H223867)

1шт.

6

H223875

CYLINDER END CAP

CAP - dust

1шт.

7

H223891

WASHER

- special, steel

1шт.

102835A1. REF. 6 & 7 NOT USED WITH THE ABOVE.REF. 10 IS PART OF NEW CAP.

1шт.

8

H223883

WASHER

- special, cork

1шт.

9

H652552

TUBE

- drive shaft

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper

1шт.

11

H251777

FLANGE

YOKE -, Serial Range: shaft-transmission

1шт.

H663724

DRIVE SHAFT

SHAFT ASSEMBLY - drive, transmission to axle, for mounting hardware see Figure 6-24, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, used on models with P.I.N. and after, Includes: Ref. 1-4, Start Serial: 1214519

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

2

11256

SNAP RING

- snap, bearing retaining, used on models with P.I.N. and after, Start Serial: 1214519

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint, used on models with P.I.N. and after, Start Serial: 1214519

4шт.

5

H223867

YOKE

- slip, to axle, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

6

H223875

CYLINDER END CAP

CAP - dust, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

7

H223891

WASHER

- special, steel, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

8

H223883

WASHER

- special, cork, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

9

H673216

TUBE

- drive shaft, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

11

H251777

FLANGE

YOKE - shaft to transmission, used on models with P.I.N. and after, Start Serial: 1214519

1шт.

ALSO AVAILABLE ARE NEW PUSH ON DUST CAPS

1шт.
